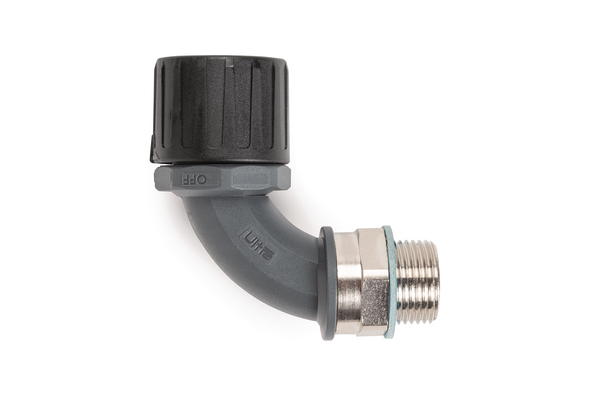

HGU21-90M-M20B-NPB/PA66-BK
Art.-Nr. 166-90826 | HGU21-90M-M20B-NPB/PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Nickel Plated Brass (NPB), Polyamide 6.6 (PA66)
    PART DESCRIPTION HGU21-90M-M20B-NPB/PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in pack
    Swivel Thread (Y/N) Yes
    Thread type metric
    Type HGU21-90M-M20B
    Variant 90°-elbow
    Bore Diameter (Imperial) 0.55"
    Bore Diameter (metric) 14.0
    Length (L) 66mm
    Nominal ∅ 0.5"
    Nominal ∅ 21mm
    Thread Length (TL) 12mm
    Thread Length (TL) (Imperial) 0.47"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026588414
    ETIM 7.0 Key EC001176
    ETIM 8.0 Key EC001176
    ETIM 9.0 Key EC001176
    UNSPSC Key 39131708
