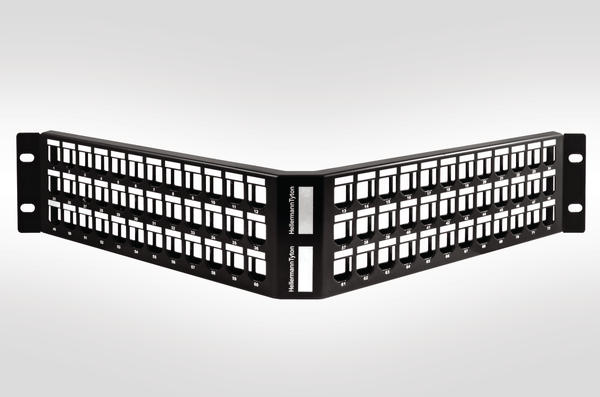

Modular Unshielded 72 Port Panel
Art.-Nr. 853-50059
| GSTAPP-2U72XX
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Description | The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of GST keystone jacks. The use of individual keystone jacks means that installation is straight forward and allows an individual jack to be removed if required. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The Modular Keystone panel is supplied without fixings, the panel is also available with Rack Snap Mountings, a Cage Nut Kit or 12 – 24 rack screws if required. An optional rear cable manager is also available. |
| PART DESCRIPTION | GSTAPP-2U72XX |
| Package Content packed in | box |
| Performance Category | Modular |
| Port count | 72 |
| Product Family | 2U Angled |
| Product Group | Modular Unshielded 72 Port Panel |
| Technical Description | Manufactured from black powder coated mild steel. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. The rear cable management bar is sold separately. |
| Type | GSTAPP-2U72XX |
