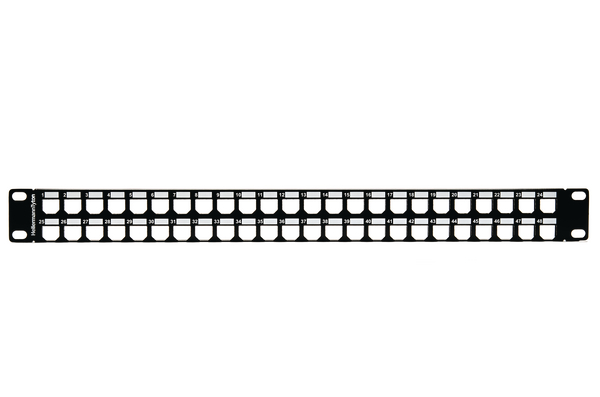

Modular Unshielded 48 Port Panel
Art.-Nr. 853-50049 | GSTPP-1U48SC | Details

Request your individual offer now

Request quote

More products in this product group:

Colour	Black (BK)
Description	The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of GST keystone jacks. The use of individual keystone jacks means that installation is straight forward and allows an individual jack to be removed if required. The Modular Keystone panel is supplied with Rack Snap Mountings as standard, the panel is also available with a Cage Nut Kit, 12 – 24 rack screws or without fixings if required. An optional rear cable manager is also available.
PART DESCRIPTION	GSTPP-1U48SC
Pack Cont.	1pc.
Package Content packed in	box
Panel Fixing Method	12 – 24 ack screws
Performance Category	Modular
Port count	48
Product Family	1U Flat
Product Group	Modular Unshielded 48 Port Panel
Technical Description	Manufactured from black powder coated mild steel. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. They are supplied as standard unloaded but include rack snaps for fast cabinet installation. The rear cable management bar is sold separately.
Type	GSTPP-1U48SC
