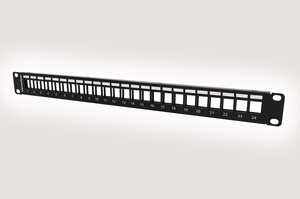

Modular Angled 1U 24 Port Panel
Art.-Nr. 853-55010
| HTC-XXS-PPA241U/BK
|
Details
- 1U 24 port 19” rack mountable
- Flat modular format with angled keystone presentation
- 24 ports divided left and right to support cable dressing
- Reduces the need for 19” cable management bars
- Directs patch leads to cabinet vertical managers
- Increases cabinet port density
- Supplied with mounting fixings & earth wire
- Supplied with folding rear manager
- Plastic free packaging
- Compatible for shielded and unshielded jacks
Request your individual offer now
Request quote
More products in this product group:
| Description | The HTC Series Modular patch panel from HellermannTyton is a 1U panel that presents 24 keystone jacks at an angle. The panel can be used in a shielded or unshielded system and accepts the HTC Series CAT6A and CAT6 tool-free jacks, and the GST CAT6 UTP Jack. The panel has been designed with 12 ports dressed to the left and 12 ports dressed to the right. The angled presentation allows patch leads to be routed out to the side management within the cabinet, reducing the need to use additional cable managers and maximising rack space and port density. The angled ports also protects the patch lead cables providing optimum bend radii for high performance. |
| PART DESCRIPTION | HTC-XXS-PPA241U/BK |
| Product Family | Shielded |
| Product Group | Modular Angled 1U 24 Port Panel |
| Short Description | Modular Angled 1U 24 Port Panel |
| Type | HTC-XXS-PPA241U/BK |
