Universal 110 Category 5e
Art.-Nr. 853-20108
| PP110C5E24RS
|
Details
- Exceeds Category 5e performance standards
- Configured for T568A and T568B wiring
- 110 punch down IDC
- Write-on labels provided for easy identification
- Optional rear cable manager available
- Available with or without Rack Snaps
- Backward compatible with Category 5 and voice applications
![](https://www.hellermanntyton.com/shared/speclogos/33029_All_Languages.jpg)
Request your individual offer now
Request quote
More products in this product group:
Colour | Black (BK) |

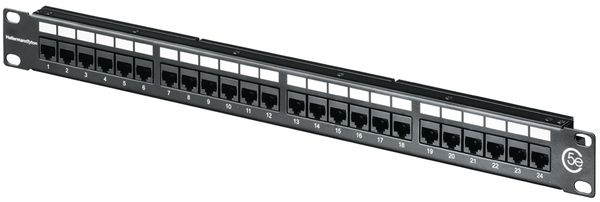

Description | The Universal 110 Category 5e range of patch panels offer exceptional performance and are also available in 1U 48 port, 2U 48 port and 12 port vertical configurations. The 1U 24 port panel is constructed of 4 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced if damaged at any stage during installation. The Universal 110 1U 24 Port Panel is supplied with or without Rack Snap mounting fixings and a rear cable manager is also available. The Universal 110 Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system. |
PART DESCRIPTION | PP110C5E24RS |
Pack Cont. | 1pc. |
Package Content packed in | box |
Panel Fixing Method | rack snap |
Performance Category | Category 5E (Class D) |
Port count | 24 |
Product Family | 1U 24 Port Panel |
Product Group | Universal 110 Category 5e |
Technical Description | The panels are manufactured with 110 IDC punch down blocks and are supplied with a clear plastic channel which protects the PCB and allows for easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Universal 110 Category 5e 1U 24 Port Panel offers backward compatibility with Category 5 and voice products. |
Type | PP110C5E24RS |
