Univeral 110 Category 6
Art.-Nr. 853-50003 | PP110C648 |  Details

    • Exceeds Category 6 performance standards
    • Configured for T568A and T568B wiring
    • 110 punch down IDC
    • Write-on labels provided for easy identification
    • Optional rear cable manager available
    • Available with or with Rack Snaps
    • Backward compatible to Category 5e and Category 5
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)

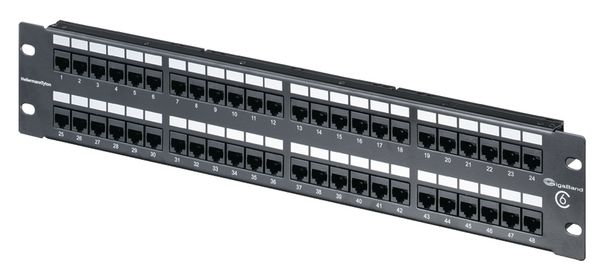

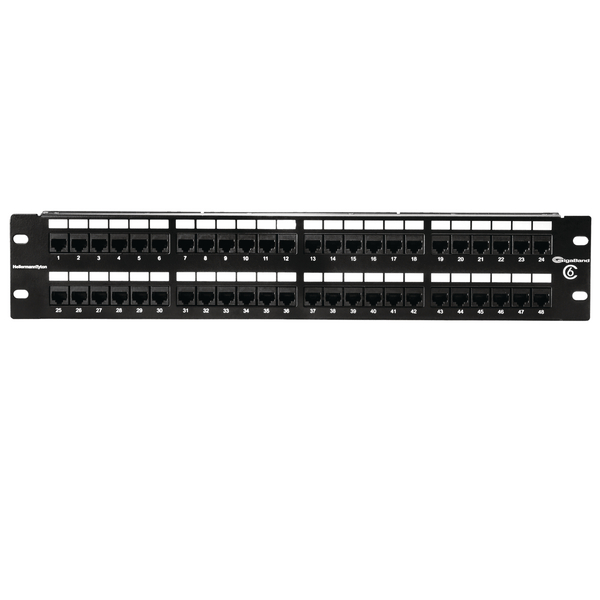

    Description The Universal 110 Category 6 range of patch panels offer exceptional performance and are also available in 1U 24 port, 1U 48 port right angled and 12 port vertical versions. The 2U 48 Port Panel is constructed of 8 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced in the case of port damage or failure. The Universal 110 2U 48 Port Panel is supplied with or with Rack Snap mounting fixings and an optional rear cable manager is also available. The Universal 110 Category 6 products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.
    PART DESCRIPTION PP110C648
    Pack Cont. 1pc.
    Package Content packed in box
    Performance Category Category 6 (Class E)
    Port count 48
    Product Family 2U 48 Port Panel
    Product Group Univeral 110 Category 6
    Technical Description The Universal 110 Category 6 range of panels is available in standard 1U 24 port, 1U 48 port, 2U 48 port and a vertical 12 port configuration. The panels are manufactured with 110 punch down IDC blocks and are supplied with a clear plastic channel which protects the PCB and allows easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Universal 110 Category 6 Panels offer backward compatibility with Category 5e, Category 5 and voice products.
    Type PP110C648

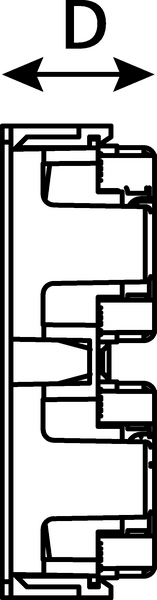

    Depth (D) 29.0mm
    Height (H) 88.0mm
    Height, Units 2U
    Width (W) 483.0mm
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E216789
    Wiring T568A
    Country of Origin GB

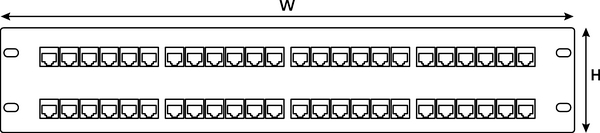

    Dimensions W x H x D 483.0 mm x 88.0 mm x 29.0 mm
    GTIN-13 / EAN 5022660849046
    ETIM 7.0 Key EC000264
    ETIM 8.0 Key EC000264
    ETIM 9.0 Key EC000264
    UNSPSC Key 43223309
