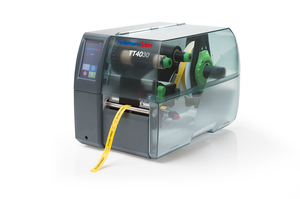

Thermal transfer printer, desktop, 300dpi, grey
Art.-Nr. 556-04037
| TT4030-PL-GY
|
Details
- High volume single sided printing
- Print on HellermannTyton heatshrink tubing, cable markers and labels
- Uses standard 300 m ribbons
- Barcodes: standard and 2D
- Print speed up to 300 mm/s (30 mm/s recommended for ladder style products and tubing)
- Multiple language selection
- Windows drivers: 32 / 64 bit for Windows XP, Windows Vista, Windows 7, 8, 10, 11
Request your individual offer now
Request quote
More products in this product group:
| Application | The TT4030 is optimally suited to industrial use and is designed for a wide range of applications. High reliability and multiple peripherals enable applications and solutions tailored to specific customer requirements. This printer is perfect for printing onto HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. It is easy to use thanks to its touchscreen display and clear status messages which can be shown in multiple languages. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be. For optimal operation, we recommend our TagPrintPro software. |
| Colour | Grey (GY) |
| Material | Plastic (PL) |
| PART DESCRIPTION | TT4030-PL-GY |
| Pack Cont. | 1pc. |
| Package Content packed in | EA |
| Print resolution DPI | 300dpi |
| Product Family | TT4030 Medium to High Volume Printer |
| Product Group | Thermal transfer printer |
| Short Description | Thermal Transfer Printer TT4030 |
| Type | TT4030 |
| Depth (D) | 460mm |
| Height (H) | 288mm |
| Label Width Max (imperial) | 4.33" |
| Label Width Min (imperial) | .16" |
| Label Width min - max | 4 - 110 mm |
| Length (L) | 381.0mm |
| Power Supply | 100-240V / 50-60Hz |
| Print Material Height Max (metric) | 2000mm |
| Print Material Height Min (metric) | 4.00mm |
| Print Material Width Max (metric) | 110.00mm |
| Print Material Width Min (metric) | 4.00mm |
| Print Method | thermal transfer print |
| Weight/Unit | 9.98kg |
| Width (W) | 252mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | No |
| Hazardous Goods | No |
| Interfaces | RS232 C, USB 2.0, Ethernet 10/100 Base T |
| Max. Print Width | 105.70mm |
| Max. Print Width | 4" |
| Operating Temperature | +4 °C to +40 °C |
| Print Head Type | 300 dpi, flat type |
| Print Speed | up to 300mm/s |
| Printer Memory | 256MB RAM |
| ROHS compliant | Yes |
| Specifications |
|
| Supported Barcodes | Standard, 2D |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | No |
| Country of Origin | DE |
| Customs Number | 84433210 |
| Dimensions W x H x D | 252 mm x 288 mm x 460 mm |
| GTIN-13 / EAN | 4031026584119 |
| Packaging 1 - Height (m) | 0.29m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.03408m³ |
| Packaging 1 - Weight (kg) | 9.98kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 3 - Height (m) | 0.415m |
| Packaging 3 - Length (m) | 0.595m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0951m³ |
| Packaging 3 - Weight (kg) | 10.48kg |
| Packaging 3 - Width (m) | 0.385m |
| Packaging 4 - Height (m) | 0.975m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 8 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.936m³ |
| Packaging 4 - Weight (kg) | 104.84kg |
| Packaging 4 - Width (m) | 0.8m |
TagPrintPro4.0-EMEA
556-00059
S4030 Cutter
556-04050
TT External Reel Holder
556-00451
TT Printer Adapter
556-00012

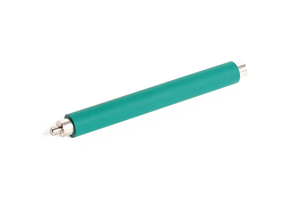

Printer Roller TT4030/TT4000+-DIV-GN
556-04005
TT 4030 Margin Stop Caddy-DIV-GY
556-00465

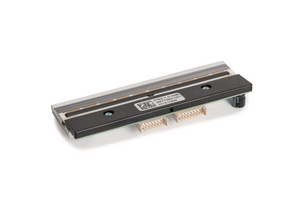

TT4030 Printhead-DIV-GY
