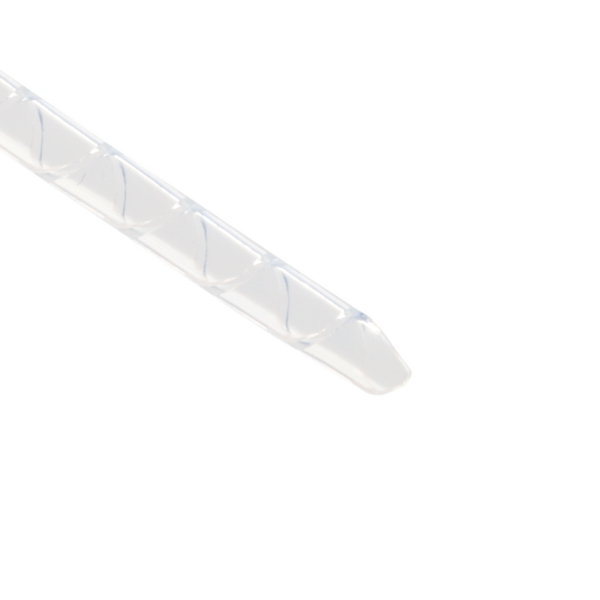

Cable Organizer
Art.-Nr. 161-05015 | 1P-PTFE-NA |  Details

Inner edges of spiralwrap are beveled to prevent damage to cables.

    • Used for organising and protecting wires, cables and tubes
    • Available in a wide range of diameters and colours
    • Can be fitted onto cables, wires or tubes in situ
    • Wires can branch out at any point and in any direction
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polytetrafluoroethylene (PTFE)
    PART DESCRIPTION 1P-PTFE-NA
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group Cable Organizer
    Type 1P
    Variant Spiral Binding
    Bundle Diameter max (metric) 12.7mm
    Bundle ∅ 1.6-12.7mm
    Bundle ∅ min. 1.6mm
    Diameter (D) 3.18mm
    Length (L) 30.48m
    Nominal ∅ 0.13"
    Nominal ∅ 3.18mm
    Pitch (P) 0.187"
    Pitch (P) 4.75mm
    Wall (WT) 0.51mm
    Wall (WT) .020"
    ∅ D 0.125"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature -267 °C to +260 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026718446
    Reel Length 100.0ft
    Reel Length 30.48m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
