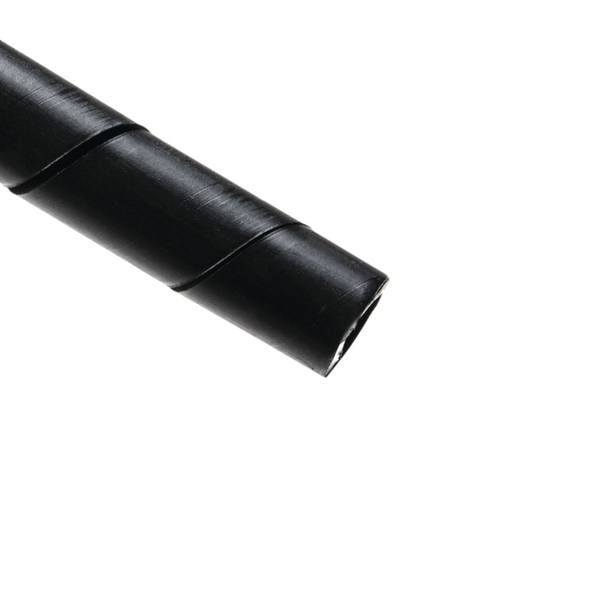

Cable Organizer
Art.-Nr. 161-05029 | 2FRP-PE-FR-BK |  Details

Inner edges of spiralwrap are beveled to prevent damage to cables.

    • Used for organising and protecting wires, cables and tubes
    • Available in a wide range of diameters and colours
    • Can be fitted onto cables, wires or tubes in situ
    • Wires can branch out at any point and in any direction
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyethylene, flame retardant (PE-FR)
    PART DESCRIPTION 2FRP-PE-FR-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group Cable Organizer
    Type 2FRP
    Variant Spiral Binding
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 4.75-50.8mm
    Bundle ∅ min. 4.75mm
    Diameter (D) 6.35mm
    Length (L) 30.48m
    Nominal ∅ 0.25"
    Nominal ∅ 6.35mm
    Pitch (P) 0.375"
    Pitch (P) 9.53mm
    Wall (WT) 1.14mm
    Wall (WT) .045"
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Operating Temperature -20 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026718736
    Reel Length 100.0ft
    Reel Length 30.48m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
