Cable Organizer
Art.-Nr. 161-05035 | 2N-PA6-NA |  Details

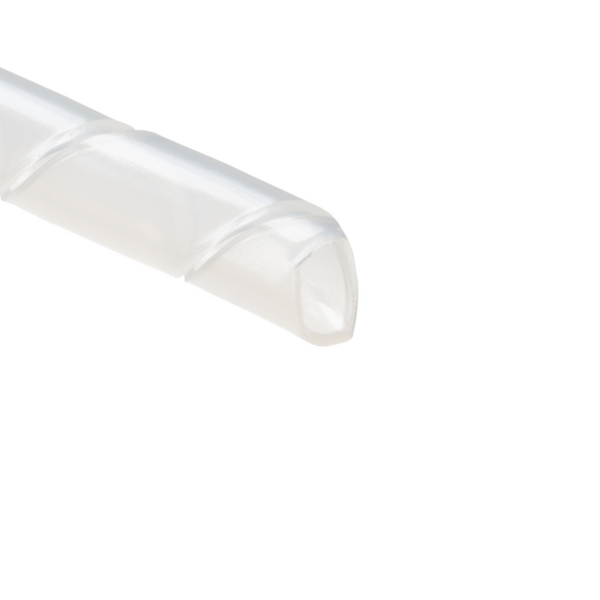

Spiralwrap protective sheathing is reusable and resistant to most chemicals.

    • Used for organising and protecting wires, cables and tubes
    • Available in a wide range of diameters and colours
    • Can be fitted onto cables, wires or tubes in situ
    • Wires can branch out at any point and in any direction
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION 2N-PA6-NA
    Pack Cont. 304.8m
    Package Content packed in reel
    Product Group Cable Organizer
    Type 2N
    Variant Spiral Binding
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 4.75-50.8mm
    Bundle ∅ min. 4.75mm
    Diameter (D) 5.1mm
    Length (L) 304.8m
    Nominal ∅ 0.25"
    Nominal ∅ 6.35mm
    Pitch (P) 0.375"
    Pitch (P) 9.53mm
    Wall (WT) 0.64mm
    Wall (WT) .025"
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +121 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026718552
    Reel Length 1000.0ft
    Reel Length 304.8m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
