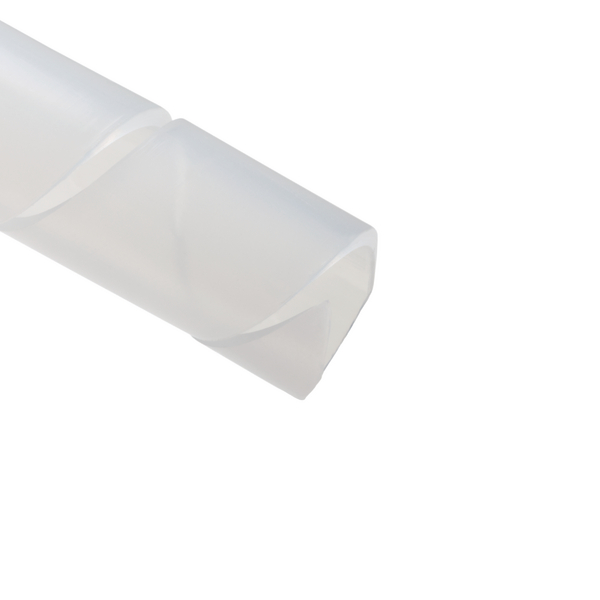

Spiralwrap
Art.-Nr. 161-05055 | 3NFP-PE-NA |  Details

Spiralwrap protective sheathing is reusable and resistant to most chemicals.

    • For organising and protecting wires, cables and tubes
    • Wide range of diameters and colours
    • Capable of retro-fitting
    • Wires can branch out at any point, in any direction
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyethylene (PE)
    PART DESCRIPTION 3NFP-PE-NA
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group Spiralwrap
    Type 3NFP
    Variant Spiral Binding
    Bundle Diameter max (metric) 102.0mm
    Bundle ∅ 9.52-102.0mm
    Bundle ∅ min. 9.52mm
    Diameter (D) 12.7mm
    Length (L) 30.48m
    Nominal ∅ 0.5"
    Nominal ∅ 12.7mm
    Pitch (P) 0.56"
    Pitch (P) 14.3mm
    Wall (WT) 1.57mm
    Wall (WT) 0.062"
    ∅ D 0.5"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -60 °C to +88 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026718415
    Packaging 3 - Weight (kg) 18.78kg
    Reel Length 100.0ft
    Reel Length 30.48m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
