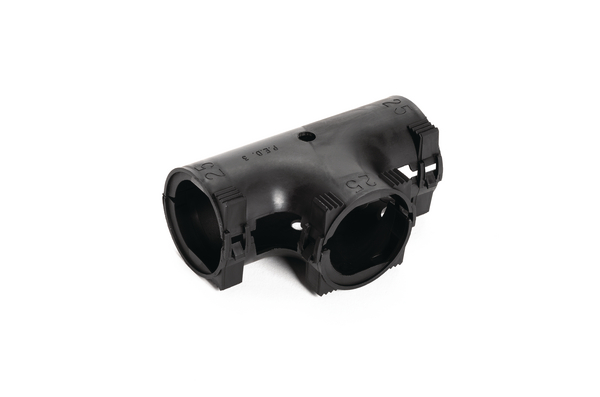

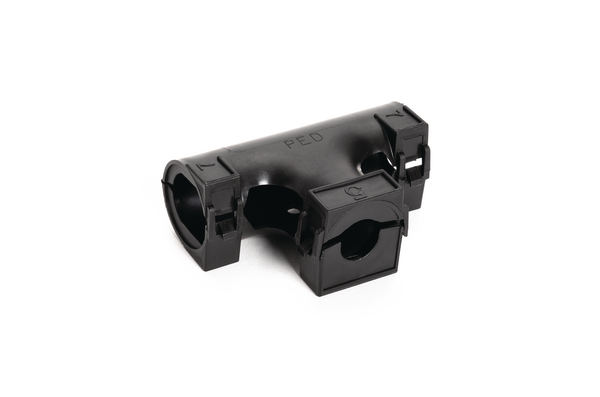

CTHC-T767-PP-BK
Art.-Nr. 167-00219 | CTHC-T767-PP-BK |  Details

Living hinge allows harness serviceability and reduces assembly time.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polypropylene (PP)
    PART DESCRIPTION CTHC-T767-PP-BK
    Pack Cont. 200pcs.
    Package Content packed in carton
    Type CTHC-T767
    Variant Fittings
    Diameter (D) 19.1mm
    Inner Diameter D (Imperial) 0.75"
    Inside Ø (ID) 19.1mm
    Outside ∅ (OD2) 0.75"
    Outside ∅ (OD2) 19.1mm
    ∅ (D2) 19.1mm
    ∅ (D3) 16mm
    ∅ D 0.75"
    ∅ D2 0.75"
    ∅ D3 0.63"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -20 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026613130
    Packaging 1 - Weight (kg) 3.6kg
    Packaging 3 - Weight (kg) 3.71kg
    UNSPSC Key 39131706
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
