Cable Organizer
Art.-Nr. 161-53006 | HWPP25-PP-WH |  Details

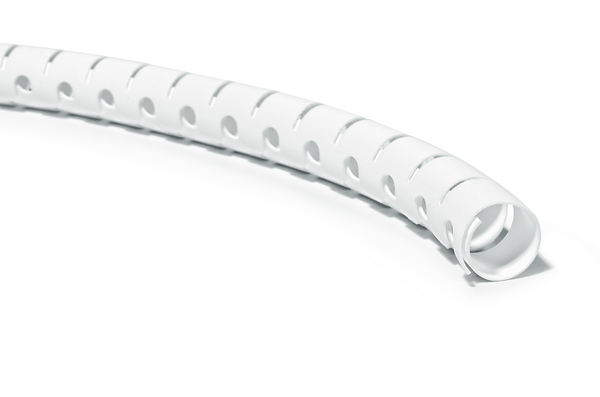

Helawrap available in white colour.

    • Protects cables and wiring effectively against mechanical stress
    • Provides a better organised, tidy and safe electrical environment
    • Cable cover applied rapidly with a simple sliding action over long cable lengths
    • Unique aperture design for branching off cables at any point
    • Covers a large range of applications with bundle diameters
    • Made of sturdy, flexible polypropylene
    • All materials halogen-free
    • Applicator tool always included
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Helawrap is used to bundle and protect cable and wiring in the electrical industry, in panel building, on machines and in automotive and truck manufacturing where movement and vibration are experienced.
    Application Method Place cables in applicator, then zip through cover sleeve.
    Colour White (WH)
    Material Polypropylene (PP)
    PART DESCRIPTION HWPP25-PP-WH
    Pack Cont. 25m
    Package Content packed in box
    Product Family Helawrap
    Product Group Cable Organizer
    Type HWPP25
    Variant Spiral Binding
    Bundle Diameter max (metric) 25mm
    Bundle ∅ 21-25mm
    Bundle ∅ min. 21mm
    Nominal ∅ 1"
    Nominal ∅ 23.0mm
    Wall (WT) 0.9mm
    Flammability UL 94 HB
    Halogen-free Yes
    Intermittent Operating Temperature +90°C
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176063083
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
