21/11/2024

Helawrap cable cover
Art.-Nr. 161-50101 | HWPP8-PP-YE |  Details

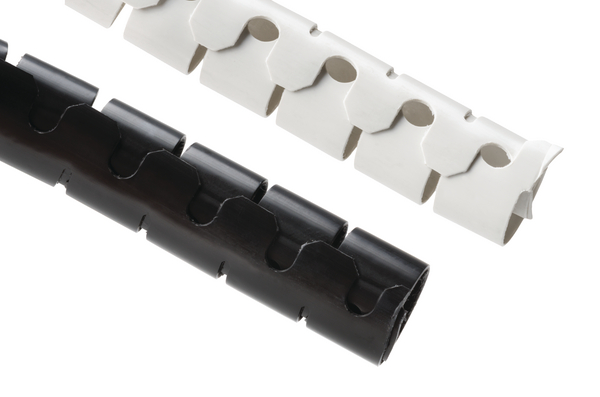

HelaWrap Cable Cover - HWPP - black.

    • Ideal solution for bundling, protecting and fixing cables
    • Quick and effortless to apply
    • Good abrasion protection
    • Special profile enables branching off cable at any point
    • Can be removed and reapplied often
    • Available in several colours and sizes
    • Handy HAT applicator tool included
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
    Application Method Place cables in applicator, then zip through cover sleeve.
    Colour Yellow (YE)
    Material Polypropylene (PP)
    PART DESCRIPTION HWPP8-PP-YE
    Pack Cont. 25m
    Package Content packed in reel
    Product Family HWPP in polypropylene
    Product Group Helawrap cable cover
    Type HWPP8
    Variant Spiral Binding
    Bundle Diameter max (metric) 9mm
    Bundle ∅ 7-9mm
    Bundle ∅ min. 7mm
    Diameter (D) 8.0mm
    Length (L) 25m
    Nominal ∅ 8mm
    Pitch (P) 10mm
    Wall (WT) 0.75mm
    Wall (WT) 0.0295"
    Flammability UL 94 HB
    Halogen-free Yes
    Intermittent Operating Temperature +140°C
    Melting Point +284 °F (+140 °C)
    Operating Temperature -60 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Specifications ECE R-118-03 Abschnitt 6 / Annex 6
    Country of Origin JP
    GTIN-13 / EAN 4944387116274
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Show all
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.

    Cable wraps >
