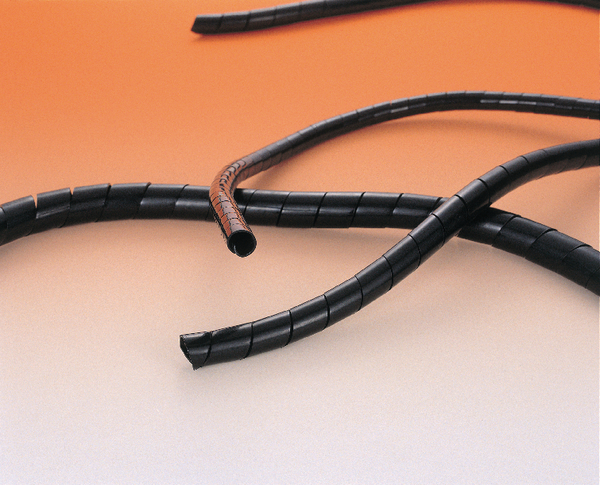

PA12 Spiral Binding for superior protection
Art.-Nr. 161-06057 | TS-13N-PA12-BK Details

  • Organises and protects cables and hoses
  • Very good protection against abrasion
  • Suitable for retro-fitting
  • Cables branch out at any point

Request your individual offer now

Application Spiral binding is used for cable harnesses in the automobile industry and for many demanding industrial applications.
Colour Black (BK)
Material Polyamide 12 (PA12)
PART DESCRIPTION TS-13N-PA12-BK
Pack Cont. 50m
Package Content packed in reel
Product Family TS-*N12 Series
Product Group PA12 Spiral Binding for superior protection
Type TS-13N
Variant Spiral Binding
Diameter (D) 11.8mm
Length (L) 50m
Pitch (P) 12mm
Wall (WT) 1.0mm
∅ (D2) 13.8mm
Flammability UL 94 HB
Operating Temperature -40 °C to +65 °C
ROHS compliant Yes
Specifications
UV-Stabilised Yes
Country of Origin JP
GTIN-13 / EAN 4944387958164
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
