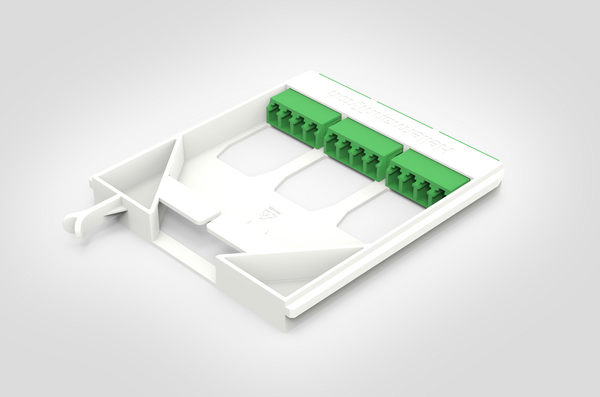

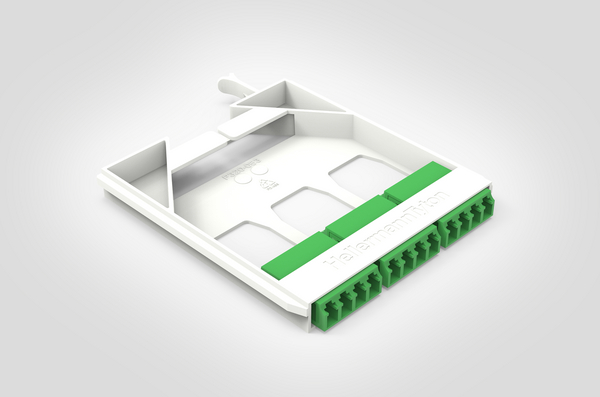

RapidNet Ultra12 AMC - Adaptor Mounting Cassette - LC/APC Singlemode OS2
Art.-Nr. 859-24119 | RNUAMC12-LPG |  Details

RapidNet Ultra12 AMC Cassette with LC/APC QD.

    • High fibre density: LC/APC 12F, CS/APC 18F, SN/APC 24F, MTP12 72F, MTP16 96F per cassette
    • Pre-loaded with adaptors
    • Ideal for managing patching fields and fan-out cables
    • Rapid deployment of ultra high density fibre applications
    • Rear loading mounting hardware
    • Effortless plug & play system
    • Signal White RAL 9003
    • UL94 V0 compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale.
    Colour Green (GN), White (WH)
    Connector Colour Green (GN)
    Connector Type LC-APC
    Description RapidNet Ultra12 AMC - Adaptor Mounting Cassette - LC/APC Singlemode OS2
    PART DESCRIPTION RNUAMC12-LPG
    Package Content packed in pcs.
    Performance Category OS2 Single Mode, Single Mode
    Product Family Ultra12 Adaptor Mounting Cassette
    Product Group Data Centre High Density Fibre System - Adaptor Mounting Cassette
    Short Description RapidNet Ultra12 AMC - Adaptor Mounting Cassette - LC/APC Singlemode OS2
    Technical Description RapidNet ULTRA12 AMC - Adaptor Mounting Cassettes are designed to facilitate patch through requirements. Each cassette is pre-loaded with either LC, CS, SN or MTP adaptors and are compatible with RapidNet ULTRA fanout cable assembled and Uniboot patchcords. AMC cassettes can be rear loaded into RapidNet ULTRA Panel Housing. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate.
    Type RNUAMC12-LPG
    Depth (D) 100mm
    Height (H) 12mm
    Width (W) 94mm
    Halogen-free Yes
    Optical Performance Singlemode
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 94 mm x 12 mm x 100 mm
    GTIN-13 / EAN 5022660197390
    ETIM 9.0 Key EC001130
