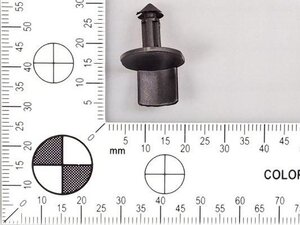

Plastic box seal 7x16 mm black
Art.-Nr. 143-03521
| BP-PA66HIR-BK
|
Details
- Tamper evident plastic box seals
- Designed to ensure ease of application and removal
- Securely lock lidded containers in transit
- New product designs available through dedicated engineering resources
- CCBOX2 are designed for SSI Schaefer FK, LTB, and KB series
- CCBOX3 are deisgned for SSI Schaefer KMB series
- BP are designed for SSI Schaefer FK series
Request your individual offer now
Request quote
More products in this product group:

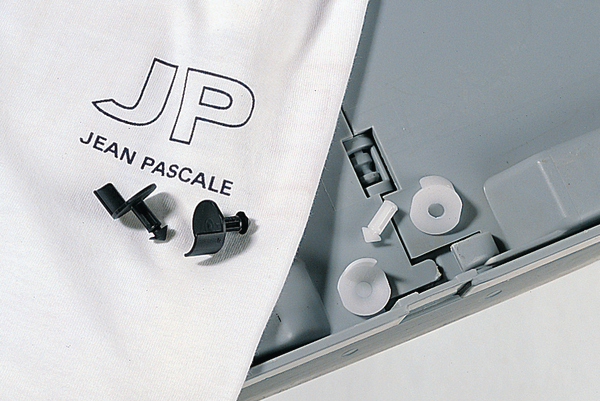

| Application | A simple to insert and securely located plastic plug seal is required when locking the lid into the box body of a container. This ensures that the lid remains in place during transit and acts as a tamper-evident method of ensuring the contents of the box have not been tampered with or removed. The design of the seal will allow for the lid to move slightly laterally, as is normal when boxes are being stacked or are in transit, and strong enough for small vertical drops (up to 0.5 m) without breaking. The seal is designed to break if the lid is lifted. 30 years of experience in the design and manufacture of plug seals mean that we are uniquely placed to offer products to solve your needs when new lidded box design are being considered. |
| Colour | Black (BK) |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| PART DESCRIPTION | BP-PA66HIR-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | pcs. |
| Product Family | Lidded Box Closure Seal |
| Product Group | Plastic Plug Seals |
| Self adhesive (Yes/No) | No |
| Short Description | Plastic box seal 7x16 mm black |
| Type | BP |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026216720 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.3m |

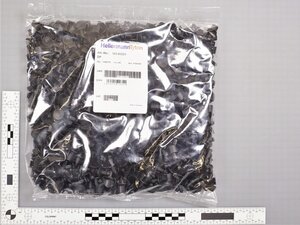

| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0033m³ |
| Packaging 1 - Weight (kg) | 0.529kg |
| Packaging 1 - Width (m) | 0.275m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 25000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 14.045kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 300000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 189.54kg |
| Packaging 4 - Width (m) | 0.8m |
