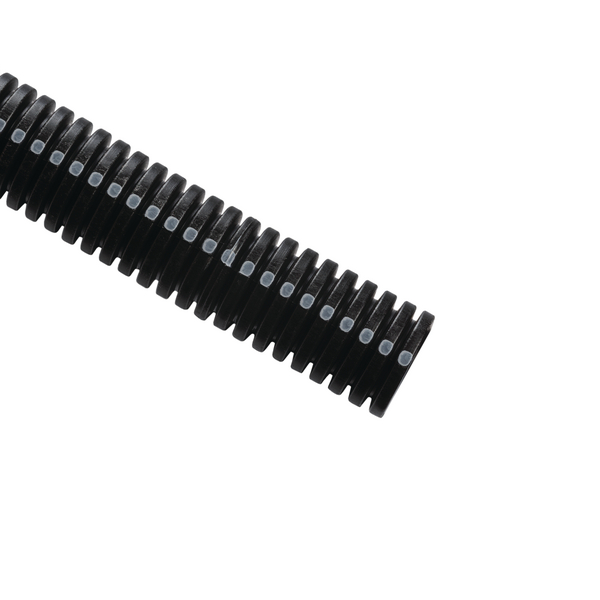

Convoluted Tubing
Art.-Nr. 169-60005 | CTN1140-PA6-BK |  Details

Tubing protects cables and wires against automotive fluids and vibration wear.

    • Durable tubing provides protection of wire harness from friction, vibration, fraying and puncture
    • Tubing protects cables and wires against automotive fluids, vibration wear
    • Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black with Grey Stripe (BKSTGY)
    Description HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires.
    Material Polyamide 6 (PA6)
    PART DESCRIPTION CTN1140-PA6-BK
    Pack Cont. 76.20m
    Package Content packed in carton
    Product Group Convoluted Tubing
    Type CTN1140
    Variant Slit
    Diameter (D) 38.10mm
    Inner Diameter D (Imperial) 1.257"
    Inside Ø (ID) 31.93mm
    Length (L) 76.2m
    Nominal ∅ 1.25"
    Nominal ∅ 31.75mm
    Outside Ø (OD) 38.10mm
    Outside ∅ (OD) 1.50"
    Outside ∅ (OD2) 1.50"
    Outside ∅ (OD2) 38.10mm
    Wall (WT) 0.152mm
    Wall (WT) 0.006"
    ∅ (D2) 31.93mm
    ∅ D 1.50"
    ∅ D2 1.257"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CA
    GTIN-13 / EAN 4031026746975
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
