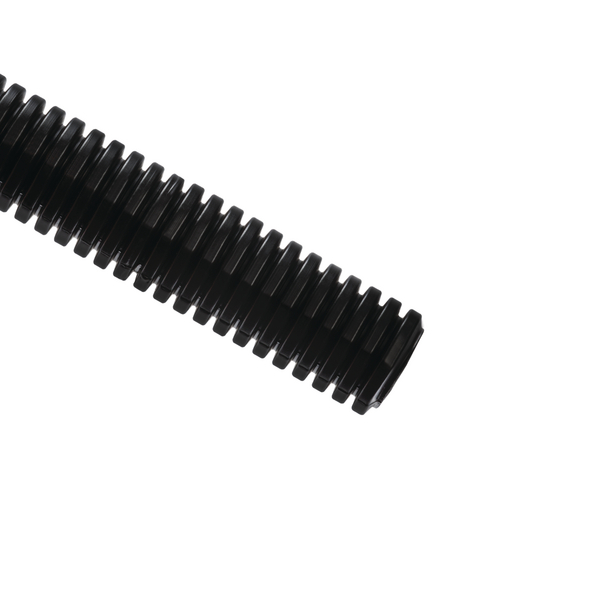

CTP140UNSLIT-PE-BK
Art.-Nr. 169-60542 | CTP140UNSLIT-PE-BK |  Details

Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyethylene (PE)
    PART DESCRIPTION CTP140UNSLIT-PE-BK
    Pack Cont. 762.0m
    Package Content packed in carton
    Type CTP140UNSLIT
    Variant Unslit
    Diameter (D) 10.11mm
    Inner Diameter D (Imperial) 0.276"
    Inside Ø (ID) 7.01mm
    Length (L) 762.0m
    Nominal ∅ 0.25"
    Nominal ∅ 6.35mm
    Outside Ø (OD) 10.11mm
    Outside ∅ (OD) 0.398"
    Outside ∅ (OD2) 0.398"
    Outside ∅ (OD2) 10.11mm
    Wall (WT) 0.102mm
    Wall (WT) 0.004"
    ∅ (D2) 7.01mm
    ∅ D 0.398"
    ∅ D2 0.276"
    CE Certification No
    CSA Certified No
    Flammability Not Flame Retardant
    Halogen-free No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CA
    GTIN-13 / EAN 4031026747491
    Packaging 1 - Weight (kg) 13.608kg
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
