20/11/2024

CTP340-PE-BK
Art.-Nr. 169-60543 | CTP340-PE-BK |  Details

Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight.

    • Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install.
    • Tubing provides full coverage where spiral wrap or other coverings may not be suitable.
    • In harsh applications the tubing provides resistance to crushing, impact, and abrasion.
    • Tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat, cold, and sunlight on cables and wires.
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)

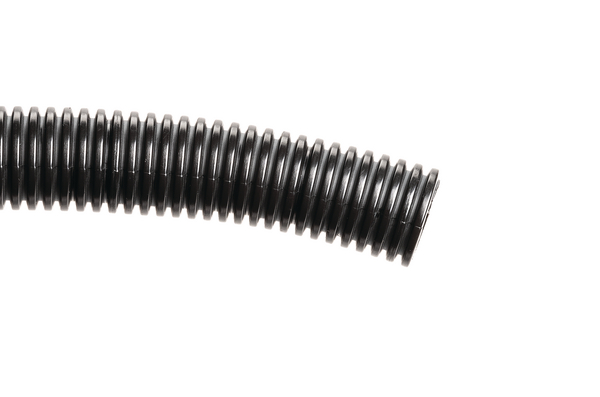

    Description HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires.
    Material Polyethylene (PE)
    PART DESCRIPTION CTP340-PE-BK
    Pack Cont. 30.48m
    Package Content packed in carton
    Type CTP340
    Variant Slit
    Diameter (D) 25.12mm
    Inner Diameter D (Imperial) 0.759"
    Inside Ø (ID) 19.28mm
    Length (L) 137.2m
    Nominal ∅ 0.75"
    Nominal ∅ 19.05mm
    Outside Ø (OD) 25.12mm
    Outside ∅ (OD) 0.989"
    Outside ∅ (OD2) 0.989"
    Outside ∅ (OD2) 25.12mm
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    ∅ (D2) 19.28mm
    ∅ D 0.989"
    ∅ D2 0.759"
    CE Certification No
    CSA Certified No
    Flammability Not Flame Retardant
    Halogen-free No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CA
    GTIN-13 / EAN 4031026747507
    Packaging 1 - Weight (kg) 3.382kg
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
