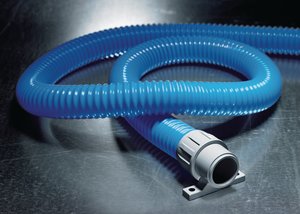

FlexiGuard Conduits and Fittings
Art.-Nr. 167-00313 | FGP19-PUR/ST-BU |

Copied

    This product is not available anymore.
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Due to its excellent resistance to chemicals and oils, Flexiguard Plus is used to protect cables in machines and plant construction, and robotics as well as leads to switch cabinets in very demanding environments.
    Colour Blue (BU)
    Material Polyurethane resin (PUR), Steel (ST)
    PART DESCRIPTION FGP19-PUR/ST-BU
    Pack Cont. 10m
    Package Content packed in metre
    Product Family FlexiGuard Plus PUR Protective Conduits
    Product Group FlexiGuard Conduits and Fittings
    Type FGP19
    Bending Radius min. (R) 19mm
    Diameter (D) 15mm
    Flexibility extremely flexible
    Inside ⌀ (ID) 15mm
    Nominal ⌀ 19mm
    Outside ⌀ (OD) 19mm
    Thread Size M20
    Weight/Unit 0.116kg
    ELV compliant (Article 4 - 2) YES
    Flammability EN IEC 61386
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP68
    Operating Temperature -40 °C to +90 °C, (+160 °C, for 200 h)
    Plain inside surface (Yes/No) No
    Plain ouside surface (Yes/No) No
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Country of Origin DE
    Customs Number 39173900
    GTIN-13 / EAN 4031026280776
    Packaging 1 - Qty 10
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 1.16kg
    Reel Length 10m
    ETIM 7.0 Key EC001177
    ETIM 8.0 Key EC001177
    ETIM 9.0 Key EC001177
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
