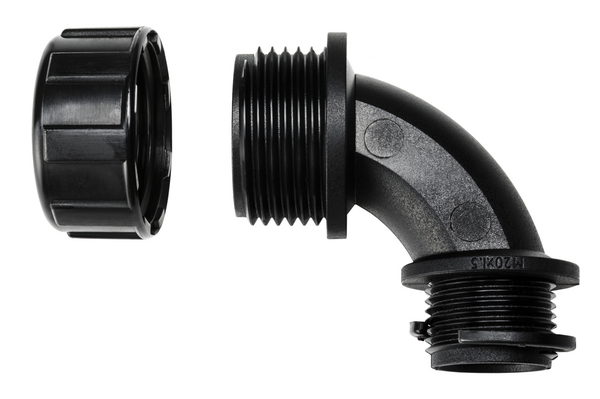

PSR100-90-1000-PA66-BK
Art.-Nr. 166-90131 | PSR100-90-1000-PA66-BK |  Details

External NPT thread provides a secure connection.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PSR100-90-1000-PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in bag
    Thread type NPT
    Type PSR100-90-1000
    Variant 90°-elbow
    Bore Diameter (Imperial) 0.97"
    Bore Diameter (metric) 24.5
    Length (L) 74mm
    Nominal ∅ 1"
    Nominal ∅ 32mm
    Outside Ø (OD) 48mm
    Outside ∅ (OD) 1.89"
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    Thread Size (Imperial) 1 "
    clearance hole Diameter (Imperial) 1.311"
    clearance hole Diameter (Metric) 33.3mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    IP-Rating IP65
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026463254
    UNSPSC Key 39131708
