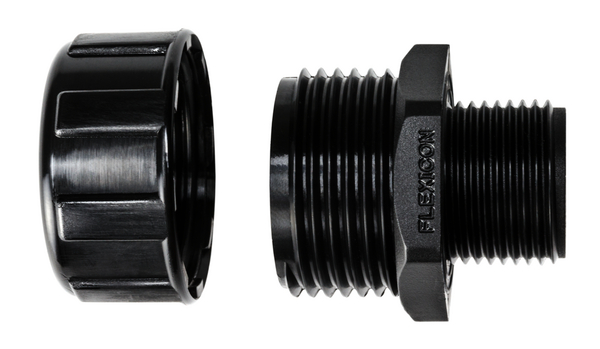

PSR100-S-1000-PA66-BK
Art.-Nr. 166-90136 | PSR100-S-1000-PA66-BK |  Details

External NPT thread provides a secure connection.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PSR100-S-1000-PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in bag
    Thread type NPT
    Type PSR100-S-1000
    Variant Straight
    Bore Diameter (Imperial) 0.97"
    Bore Diameter (metric) 24.5
    Length (L) 48mm
    Nominal ∅ 1"
    Nominal ∅ 32mm
    Outside Ø (OD) 48mm
    Outside ∅ (OD) 1.89"
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    Thread Size (Imperial) 1 "
    clearance hole Diameter (Imperial) 1.311"
    clearance hole Diameter (Metric) 33.3mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    IP-Rating IP65
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026463308
    UNSPSC Key 39131708
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
