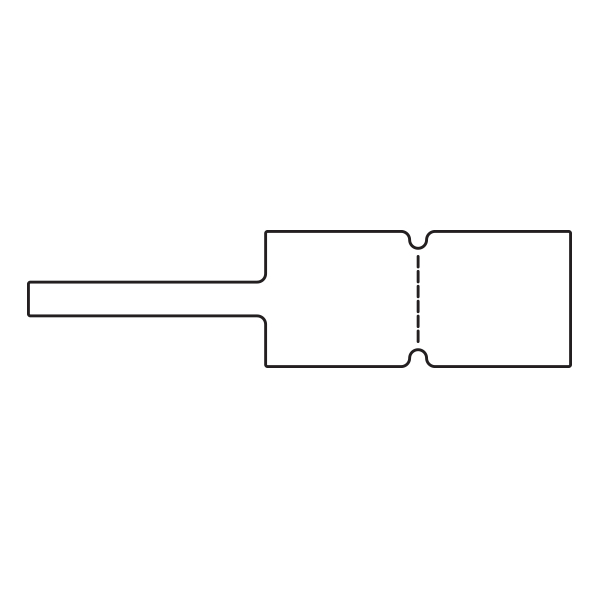

Cable label, white, laser print, 44.5x25.4mm, H2=57.15mm, 2400
Art.-Nr. 596-97004 | FTLS-PET-WH |  Details

Notched score line for error-free, single-finger folding.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White gloss (GSWH)
    Material Polyester (PET)
    PART DESCRIPTION FTLS-PET-WH
    Pack Cont. 2400
    Package Content packed in reel
    Type FTLS
    For AWG 2/0
    H printable 25.4mm
    HR 6.35mm
    HR .25"
    Height (H) 44.5mm
    Height (H2) 57.15mm
    Height (H3) 101.6mm
    Max. Wire Size (in²) .375"
    Print Method laser print
    Thickness (T) 64.0µm
    VR 31.75mm
    VR 1.25"
    Width (W) 25.4mm
    Width (W2) 6.35mm
    Width of LIner (WL) 8.5"
    Width of Liner (WL) 215.9mm
    Width printable 28.44mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Max. Print Width 215.9mm
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026659909
    Labels per Column 8
    Labels per Row 2
    Labels per Sheet 16
    Packaging 1 - Height (m) 0.044m
    Packaging 1 - Length (m) 0.279m
    Packaging 1 - Volume (m³) 0.00265m³
    Packaging 1 - Weight (kg) 0.45kg
    Packaging 1 - Width (m) 0.216m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 55121606
