Carrier for label 10.00 mm transparent / reel=25 m
Art.-Nr. 525-10003 | HCR09-PEUV-CL |  Details

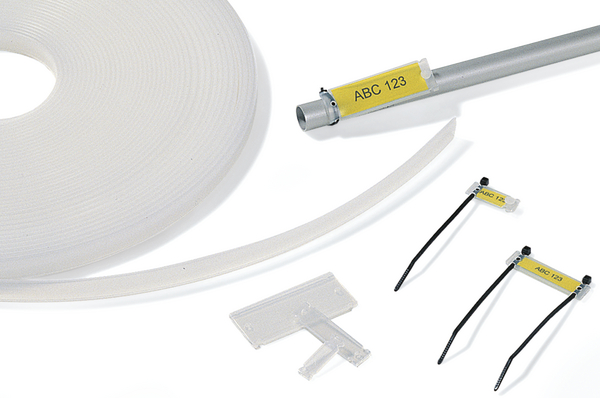

Multi-purpose identification potential: Helafix HC and HCR.

    • Versatile transparent carriers for HFX labels used for temporary or permanent marking
    • Fixed in place using T18 series cable ties, screws or rivets (carrier HC06, no rivet hole)
    • Protects inserted HFX label against damp, dirt, damage and UV radiation
    • Helafix HC supplied as cut lengths in bags, pre-cut and pre-punched rivet hole (carrier HC06 has no punched hole)

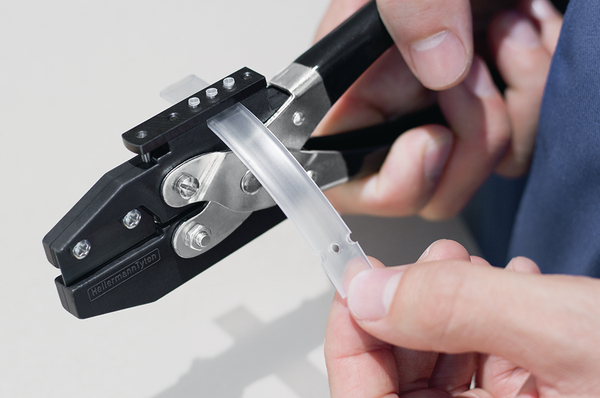

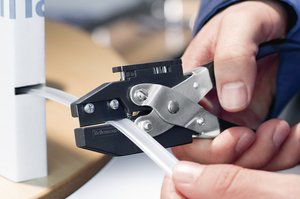

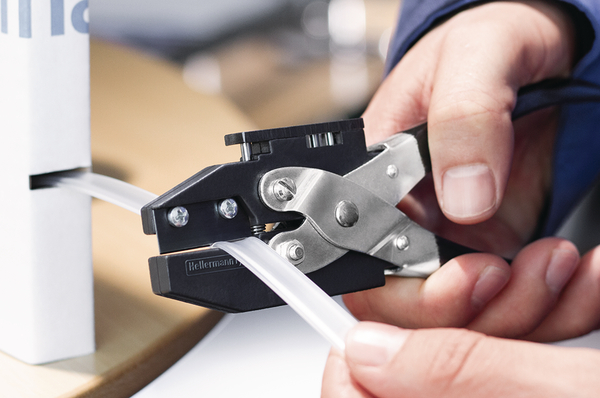

    • Helafix HCR supplied in continuous tube format and can be cut to size with HCT tool
    • Helafix HFX labels designed to fit into HC and HCR carriers
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Marking of cable looms, cables, pipes, transport systems, valves, sensors, for inventory marking on machines or other parts.
    Chem. Material Properties Resistance to water and a variety of solvents.
    Colour Transparent (CL)
    Fixation Method plug in
    Key product features non-adhesive
    Material Polyethylene, UV-resistant (PEUV)
    PART DESCRIPTION HCR09-PEUV-CL
    Pack Cont. 25m
    Package Content packed in reel
    Product Family Helafix HCR Carriers continuous
    Product Group Carrier marking system, laser printer
    Recommended Labels HFX9
    Self adhesive (Yes/No) No
    Short Description Carrier for label 10.00 mm transparent / reel=25 m
    Type HCR09
    Variant Roller form
    With label space No
    For Carrier Width 9.00 mm

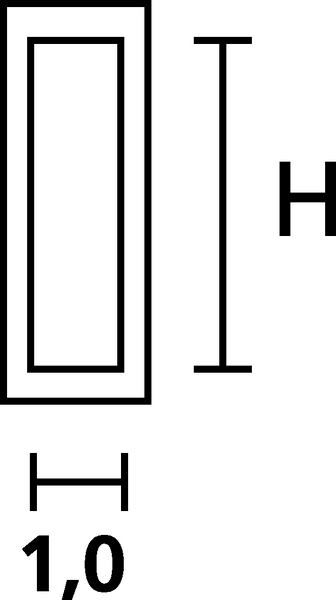

    Height (H) 10.00mm

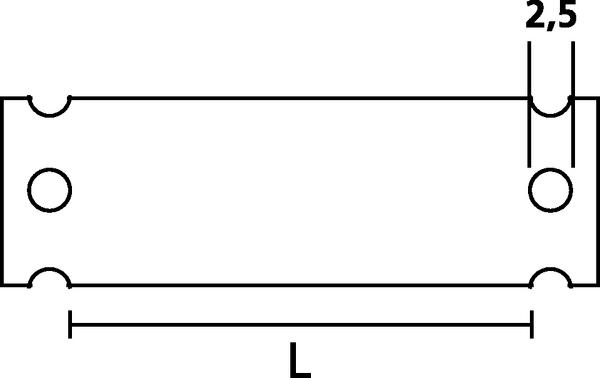

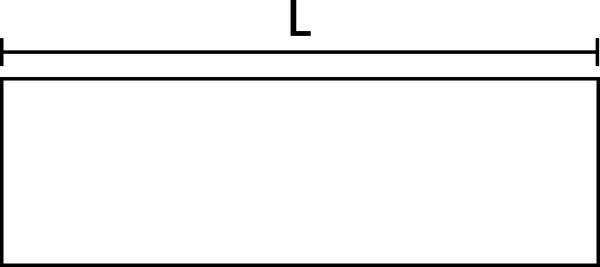

    Length (L) 25m
    Strap Width max. (G) 2.50mm
    Weight/Unit 0.01384kg
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -60 °C to +65 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    Country of Origin SE
    Customs Number 39269097
    GTIN-13 / EAN 4031026165332
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.365m
    Packaging 1 - Qty 25
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.00324m³
    Packaging 1 - Weight (kg) 0.486kg
    Packaging 1 - Width (m) 0.355m
    Reel Length 25.0m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
