HHS – Heat Shrink Tube Tapes
Art.-Nr. 556-99231 | HHS231-PO-X-BK/WH |  Details

    • Heat Shrink Tapes are easy to use and come in various sizes and colors. The labels are resistant to abrasion, chemicals, and fading, ensuring they remain intact over time. Printing of markers is quicker than using a desktop printer, providing convenience, especially in remote areas where traditional printing equipment may be limited.
    Add to watchlist

    Request your individual offer now

     Request quote

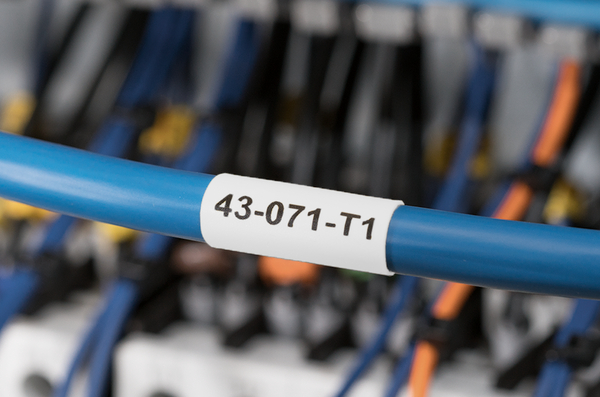

    Application HTZ Heat Shrink Tapes are designed for durable and labelling of cables and wires. These tapes use heat-shrinkable tubing that, when heated, shrinks 2:1 to fit around cables ensuring a secure and professional marking. Ideal for electrical, datacom, and industrial applications, this will help keep your cables and wires organized and easily identifiable.
    Colour Black (BK), White (WH)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION HHS231-PO-X-BK/WH
    Pack Cont. 1pc.
    Printable Yes
    Product Family HHS – Heat Shrink Tube Tapes
    Shrink Ratio 2:1
    Type HHS231
    Variant Thin-Wall
    With inner glue (Yes/No) No
    Print Method thermal transfer print
    Weight/Unit 0.0375kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Min. Shrink Temperature - °C +70 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Reel Variant continuous
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026767413
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.07m
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.00013m³
    Packaging 1 - Weight (kg) 0.0375kg
    Packaging 1 - Width (m) 0.02m
    Packaging 2 - Height (m) 0.216m
    Packaging 2 - Length (m) 0.265m
    Packaging 2 - Qty 50
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0085m³
    Packaging 2 - Weight (kg) 1.875kg
    Packaging 2 - Width (m) 0.148m
    Packaging 3 - Height (m) 0.237m
    Packaging 3 - Length (m) 0.548m
    Packaging 3 - Qty 200
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0408m³
    Packaging 3 - Weight (kg) 7.5kg
    Packaging 3 - Width (m) 0.314m
    Reel Length 1.5m
    ETIM 7.0 Key EC000217
    ETIM 8.0 Key EC000217
    ETIM 9.0 Key EC000217
