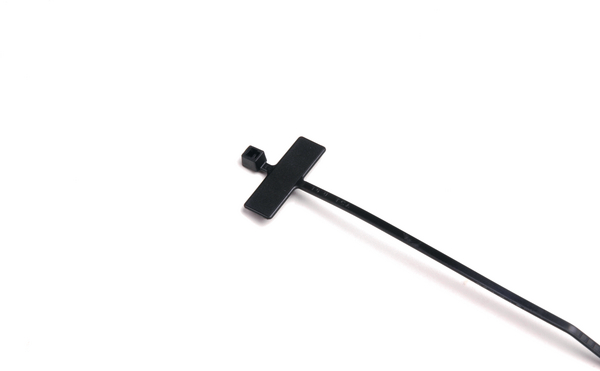

Identification cable tie, 100.0x25mm, ∅6.00-22.00mm, black, 1000pcs.
Art.-Nr. 111-81860 | IT18R-PA66-BK |  Details

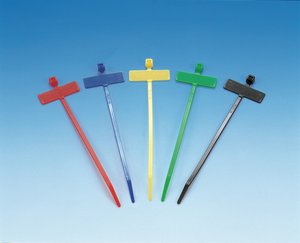

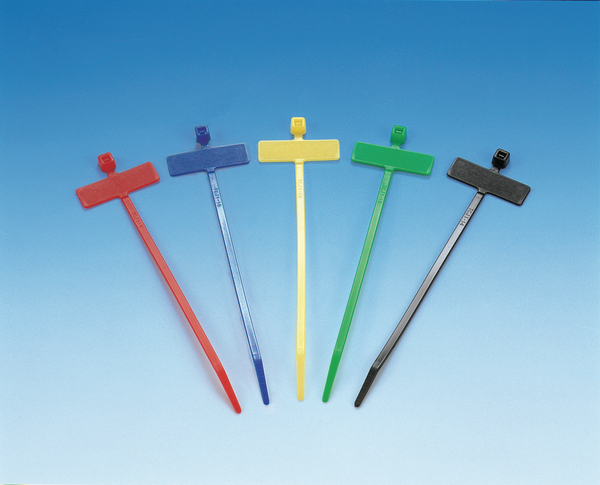

Cable tie features an identification plate to easily identify bundles.

    • Identification ties made of Polyamide 6.6
    • For simple identification and securing of cable bundles in one step
    • Printable labels are available for a professional finish
    • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

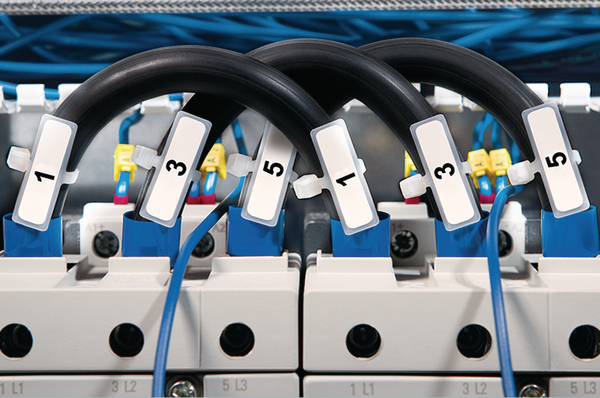

    Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Fixation Method None
    Identification Plate Position attached to bundle
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION IT18R-PA66-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family IT Ties
    Product Group Identification ties and plates for marking cable bundles
    Recommended Labels TAG23-06TD1
    Releasable Closure (Yes/No) No
    Short Description Cable Tie with Marker Plate 100x2.5 mm black
    Tie Closure plastic pawl
    Type IT18R
    Variant Inside Serrated
    With label space Yes
    Bundle Diameter max (metric) 22.00mm
    Bundle ∅ 6.00-22.00mm
    Bundle ∅ min. 6.00mm

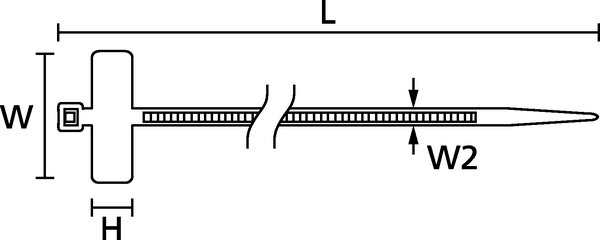

    Height (H) 8.00mm
    Length (L) 100.0mm
    Min.Tensile Strength 80N
    Outside ∅ max (OD max.) 16mm
    Outside ∅ min. (OD min.) 6mm
    Print Method manual marking
    Weight/Unit 0.0003kg
    Width (W) 25mm
    Width (W2) 2.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type 11
    UL-File Number E64963
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660308246
    Packaging 1 - Height (m) 0.096m
    Packaging 1 - Length (m) 0.267m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00674m³
    Packaging 1 - Weight (kg) 0.500001kg
    Packaging 1 - Width (m) 0.263m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 5.80201kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 137.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
