Identification cable tie, 390.0x56.0mm, ∅19.0-100.0mm, natural, 1000pcs.
Art.-Nr. 111-85306 | IT50L-PA66-NA |  Details

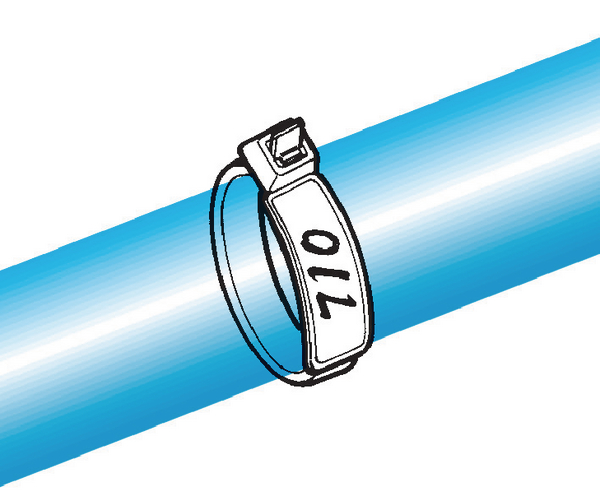

Cable tie features an identification plate to easily identify bundles.

    • Identification ties made of Polyamide 6.6
    • For simple identification and securing of cable bundles in one step
    • Printable labels are available for a professional finish
    • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Natural (NA)
    Fixation Method None
    Identification Plate Position attached to bundle
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION IT50L-PA66-NA
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family IT Ties
    Product Group Identification ties and plates for marking cable bundles
    Recommended Labels TAG52-10TD1
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type IT50L
    Variant Inside Serrated
    With label space Yes
    Bundle Diameter max (metric) 100.0mm
    Bundle ∅ 19.0-100.0mm
    Bundle ∅ min. 19.0mm
    Height (H) 12.8mm
    Length (L) 390.0mm
    Min.Tensile Strength 225N
    Outside ∅ max (OD max.) 100.00mm
    Outside ∅ max. 3.94"
    Outside ∅ min. 0.75"
    Outside ∅ min. (OD min.) 19.00mm
    Print Method manual marking
    Width (W) 56.0mm
    Width (W2) 4.7mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications CAGE Code 53421, UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    US Gov. Designation MS3368-2-9A, SAE-AS33681
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026418605
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
