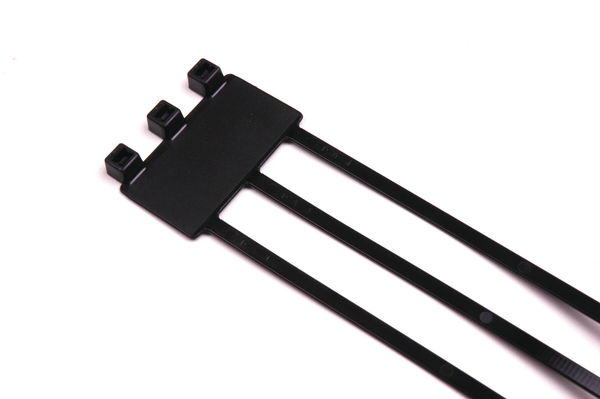

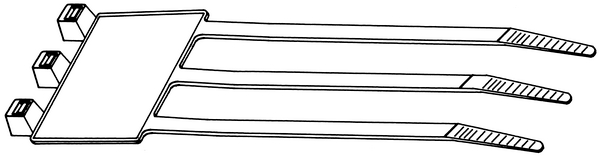

Identification cable tie, 203.2x46.0mm, ∅10.0-44.0mm, black, 50pcs.
Art.-Nr. 111-85106
| IT50RT-PA66W-BK
|
Details
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
Request your individual offer now
Request quote
More products in this product group:
| Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Black (BK) |
| Fixation Method | None |
| Identification Plate Position | attached to bundle |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| PART DESCRIPTION | IT50RT-PA66W-BK |
| Pack Cont. | 50pcs. |
| Package Content packed in | bag |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAG43-21TD1 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | IT50RT |
| Variant | Inside Serrated |
| With label space | Yes |
|
|
| Bundle Diameter max (metric) | 44.0mm |
| Bundle ∅ | 10.0-44.0mm |
| Bundle ∅ min. | 10.0mm |

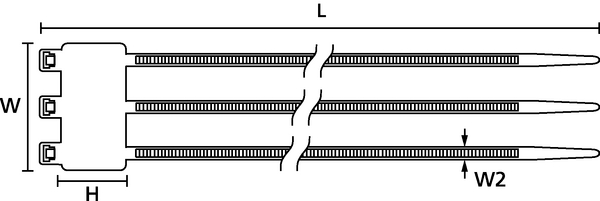

| Height (H) | 26.3mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Outside ∅ max (OD max.) | 44.00mm |
| Outside ∅ max. | 1.73" |
| Outside ∅ min. | 0.393" |
| Outside ∅ min. (OD min.) | 10.00mm |
| Print Method | manual marking |
| Weight/Unit | 0.0052kg |
| Width (W) | 46.0mm |
| Width (W2) | 4.7mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications | CAGE Code 53421, UL-ZODZ2.E64139 |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| US Gov. Designation | MS3368-4-0D, Class 1, SAE-AS33681 |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026417134 |
| Packaging 1 - Height (m) | 0.127m |
| Packaging 1 - Length (m) | 0.152m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00637m³ |
| Packaging 1 - Weight (kg) | 0.260001kg |
| Packaging 1 - Width (m) | 0.33m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 5.82002kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 137.4kg |
| Packaging 4 - Width (m) | 0.8m |
