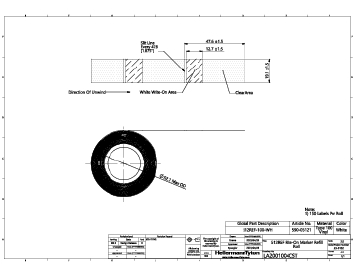

Cable label, self laminating, Refill pack, white, manual marking, 12.7x19.05mm, H2=47.62mm, 150pcs.
Art.-Nr. 590-05121
| RO512REF-100B-WH
|
Details
- Compact to easily fit in pants or shirt pockets
- Dispenser can be reloaded over and over, making it cost effective to use
- Dispenser edge allows easy removal of label liner
- Dispenser protects labels from dirt and moisture before use, extending the life and quality of the labels
Request your individual offer now
Request quote
More products in this product group:
| Application | RiteOn Starter Pack The ideal way of starting to use HellermannTyton’s excellent hand held labelling products. Refill Packs Refill packs are available with label areas in 6 different colours that will suit most applications. Refilling is simplicity itself into the RiteOn dispenser. Marking Pen Permanent marker pen for reliable labelling. The indelible ink will not wash off and dries very quickly. Available in pairs in either black or red. |
| Colour | White (WH) |
| Colour Marking Field | White (WH) |
| Description | Refill pack |
| Fixation Method | Pasting / Stick |
| Material | Type 100B, Vinyl, white transparent, self-laminating (100B) |
| PART DESCRIPTION | RO512REF-100B-WH |
| Pack Cont. | 150pcs. |
| Package Content packed in | reel |
| Product Group | Hand Writable Labels |
| Self adhesive (Yes/No) | Yes |
| Type | RO512REF |
| Variant | Roller form |
| With label space | Yes |
| Bundle Diameter max (metric) | 8.38mm |
| Bundle ∅ | 6.68-8.38mm |
| Bundle ∅ min. | 6.68mm |
| For AWG | 9 to 5 |
| Height (H) | 12.7mm |
| Height (H2) | 47.62mm |
| Min. Wire Size (in²) | 0.10" |
| Outside ∅ max (OD max.) | 8.38mm |
| Outside ∅ max. | 0.33" |
| Outside ∅ min. | 0.263" |
| Outside ∅ min. (OD min.) | 6.68mm |
| Print Method | manual marking |
| Width (W) | 19.05mm |
Download
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +80 °C |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | from +10 °C |
| Halogen-free | No |
| Operating Temperature | -40 °C to +80 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | MH18396 |
| UV-Stabilised | No |
