22/12/2024

Label, white/black, ∅12.5mm, 200pcs.
Art.-Nr. 597-21115 | WM1-ERDE1-720-BK/WH |  Details

Accurate and permanent labelling offers more safety.

    • Easy removal of single labels due to handy cards
    • For permanent identification even at high temperatures
    • Optimal protection against dirt due to a smooth material surface
    • Additional formats and imprints available on request
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

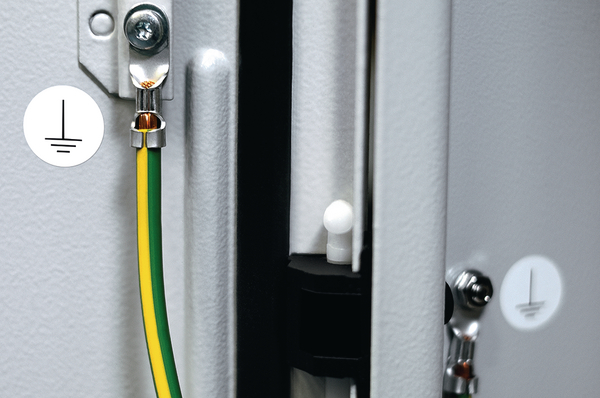

    Application The labels are used, among other applications, to identify conductors, electric assets and switchgears.
    Cable ∅ min 0.00mm
    Chem. Material Properties Good resistant to alcohol, solvents and acids
    Colour White (WH), Black (BK)
    Fixation Method Stick
    Material Type 720, Polyester, white (720)
    PART DESCRIPTION WM1-ERDE1-720-BK/WH
    Pack Cont. 200pcs.
    Package Content packed in pack
    Product Family HELASIGN, Material 720 (White)
    Product Group Preprinted conductor and asset identification

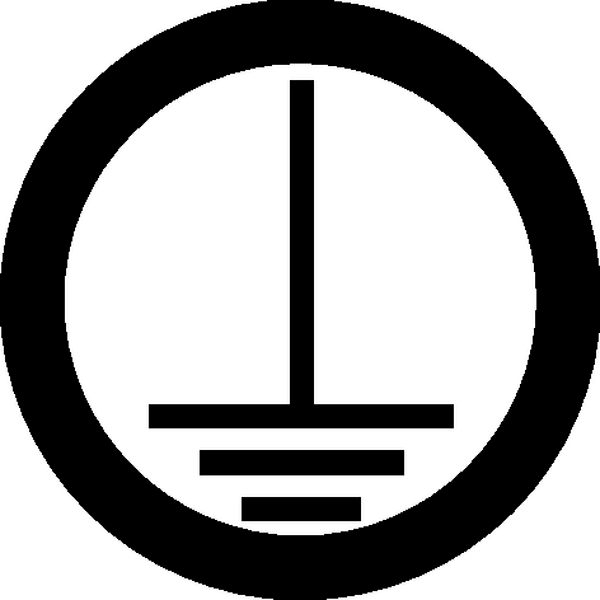

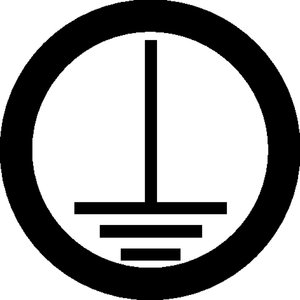

    Short Description Wire Marker with Printing "ERDE" white/black
    Type WM1-ERDE1
    Variant Card form
    With label space No
    Bundle ∅ 0.00mm
    Bundle ∅ min. 0.00mm

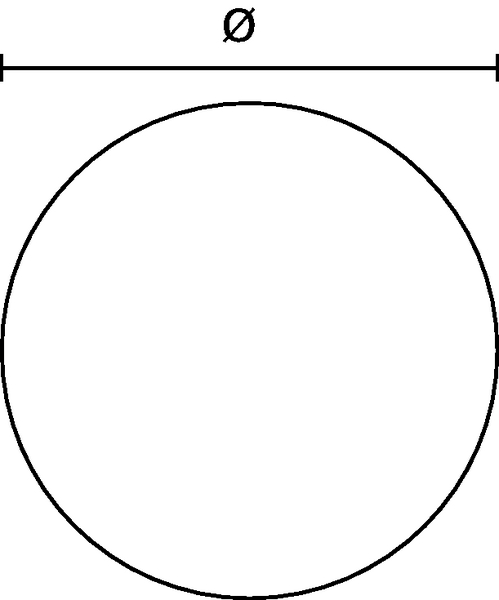

    Diameter (D) 12.5mm
    Outside ∅ min. (OD min.) 0.00mm
    Thickness (T) 50.0µm
    Thickness of Foil 50
    Weight/Unit 0.0001kg
    Adhesive Acrylic
    Curing Temperature from +5 °C
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    Pre-Printed Yes
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) Yes
    Country of Origin DE
    Customs Number 49119900
    GTIN-13 / EAN 4031026177175
    Labels per Sheet 20pcs.
    Packaging 1 - Height (m) 0.005m
    Packaging 1 - Length (m) 0.275m
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00015m³
    Packaging 1 - Weight (kg) 0.070001kg
    Packaging 1 - Width (m) 0.11m
    Packaging 3 - Height (m) 0.24m
    Packaging 3 - Length (m) 0.55m
    Packaging 3 - Qty 100000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0515m³
    Packaging 3 - Weight (kg) 35.5kg
    Packaging 3 - Width (m) 0.39m
    Sheets per Pack 10pcs.
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
