Wiring duct of air conditioning duct system in self-extinguishing rigid PVC
Art.-Nr. 250-00252 | AC6050-PVC-WH |  Details

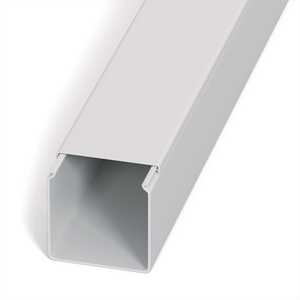

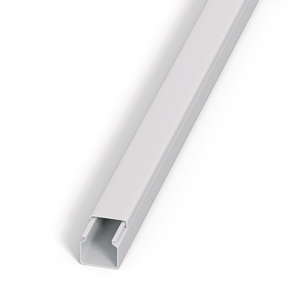

AC6050 HelaClima duct.

    • Ideal for protection and aesthetics in the installation of air conditioning;
    • made with thermoplastic and self-extinguishing material;
    • Impact resistant;
    • Reduced installation time;
    • Allows the installation of air conditioning in various environments;
    • The accessories facilitate the installation, eliminating cutout of the wiring ducts;
    • Available in three wiring ducts models.
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The HelaClima wiring ducts are used for protection na aesthetics in the installation of air conditioning system such as pipes, thermal insulation, drain and electric cables. They are composed of base and cover with two meters lenght and are available in three different sizes: 30x30mm, 60x50mm and 80x80mm.
    Colour White (WH)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION AC6050-PVC-WH
    Pack Cont. 16pcs.
    Package Content packed in box
    Product Family HelaClima system in white PVC
    Product Group Wiring duct of air conditioning duct system in self-extinguishing rigid PVC
    Type AC6050
    Height (H) 48.7mm
    Length (L) 2000mm
    Wall (WT) 1.6mm
    Width (W) 60.0mm
    Flammability UL 94 V0
    Operating Temperature -20 °C to +70 °C
    ROHS compliant No
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176083913
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
