Accessory, Raceway, white, 1pc. (FPTB)
Art.-Nr. 250-00226 | FPTB-ABS-WH |  Details

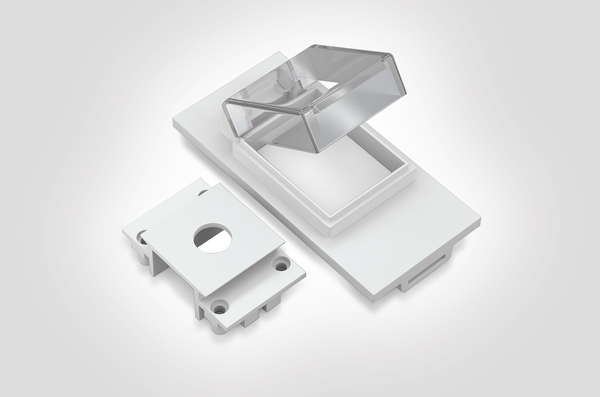

FPTB faceplate.

    • Ideal for power or data installation;
    • Indicated to equip accessories of all wiring ducts sizes.
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The FPTB faceplate has housing up to two DIN modules as well as support for rail mounting.
    Colour White (WH)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION FPTB-ABS-WH
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family HelleramannTyton Faceplates in white ABS
    Product Group Wiring duct raceway system in self-extinguishing ABS
    Type FPTB

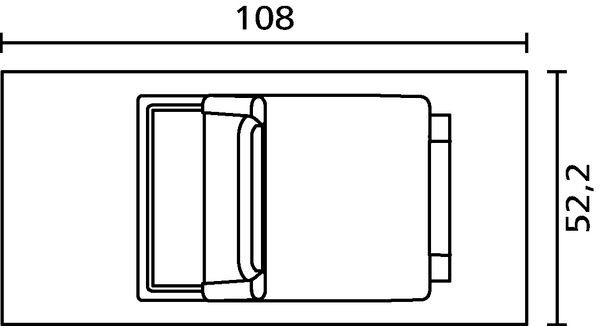

    Length (L) 107.9mm
    Width (W) 52.2mm
    Flammability UL 94 V0
    ROHS compliant No
    Country of Origin BR
    GTIN-13 / EAN 7890176031792
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
