Wiring Duct Solid Wall
Art.-Nr. 181-00056 | HD0F-15x20-PVC-GY |  Details

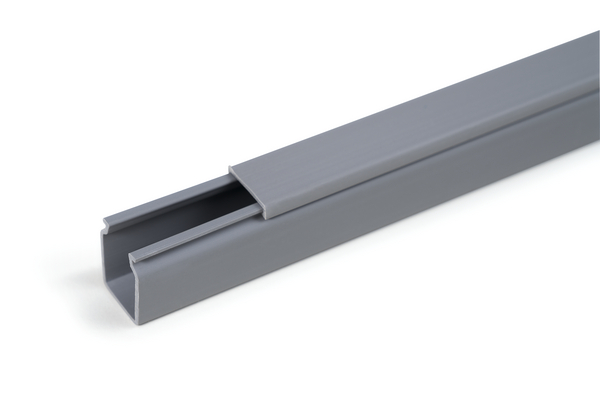

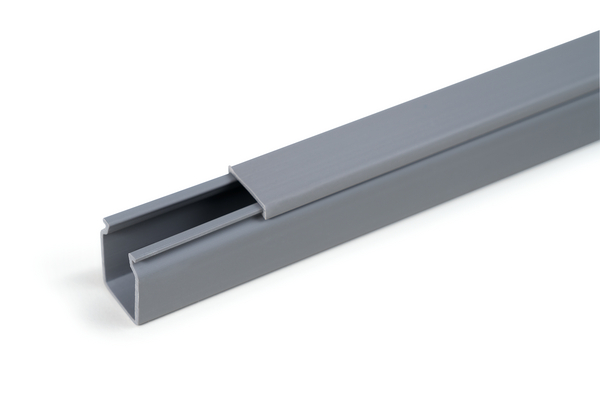

HD wiring duct solid wall.

    • Ideal for conducting, protecting and directing wires and cables
    • Available in Open (P), Semi-open (FP) and Closed (F)
    • With 4 color options
    • The holes in the base allow quick installation with screws or rivets
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Ideal for conducting, protecting and directing wires and cables in electrical installations and control panels.
    Colour Grey (GY)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HD0F-15x20-PVC-GY
    Pack Cont. 48m
    Package Content packed in box
    Product Family Heladuct HD Series
    Product Group Wiring Duct Solid Wall
    Type HD0F-15x20
    Height (H) 20.3mm
    Length (L) 2000mm
    Wall (WT) 1.1mm
    Width (W) 15.5mm
    Flammability UL 94 V0
    Operating Temperature -20 °C to +70 °C
    ROHS compliant Yes
    Specifications
    Specifications IEC 61084-1:1991, IEC 61084-2-1:1996
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number BR1093
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176003508
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
