17/11/2024

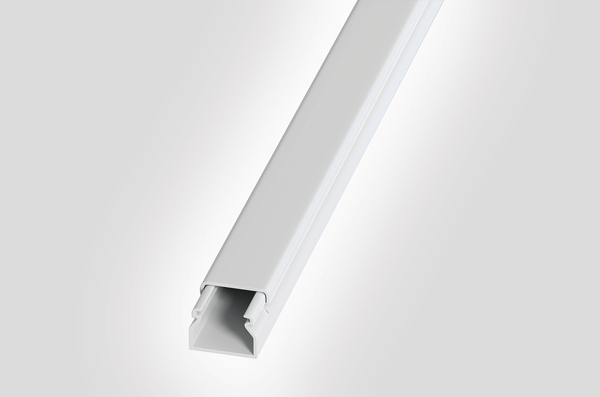

Wiring duct of wiring duct raceway system in self-extinguishing rigid PVC
Art.-Nr. 250-00104 | HT2730-PVC-WH |  Details

HT2730

    • Ideal for renovations, retrofits and new buildings;
    • Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
    • Does not oxide, indicated for use in properties located in areas of sea air.
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The wiring duct raceways of MINICANAL system are suitable for installations with effective separation between power and data cables without the need to break walls, ensuring low cost and reduced installation time. Its fixation methode can be with or without adhesive (double-sided tape), the covers have a sturdy locking system that ensures safety and protection in the installation. The HTD2010, HTDA2010, HT4016, HT5020 and HTA5020 models have internal spacer to separate power and data cables during the entire course.
    Colour White (WH)

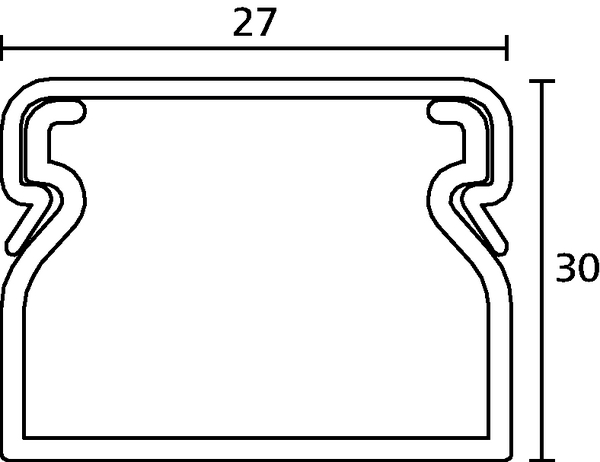

    Description Standard Minicanal wiring duct with 2m length, composed by base and cover 27x30mm.
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HT2730-PVC-WH
    Pack Cont. 20pcs.
    Package Content packed in pack
    Product Family Minicanal system in PVC
    Product Group Wiring duct of wiring duct raceway system in self-extinguishing rigid PVC
    Type HT2730
    Height (H) 30mm
    Length (L) 2000mm
    Width (W) 27mm
    Flammability UL 94 V0
    ROHS compliant No
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176048578
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
