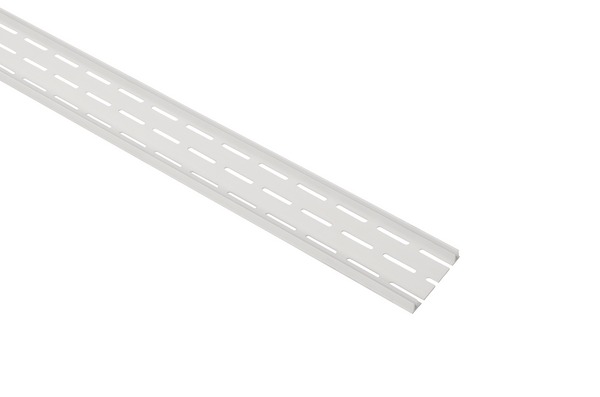

MDB3-PVC-WH
Art.-Nr. 181-01017 | MDB3-PVC-WH |  Details

The contoured channel profile holds sidewalls in place and allows for easy insertion, removal or replacement of sidewalls without having to remove base.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION MDB3-PVC-WH
    Pack Cont. 36.58m
    Package Content packed in carton
    Type MDB3
    Length (L) 1.83m
    Thickness (T) 1.91mm
    Width (W) 64.06mm
    Width (W2) 82.6mm
    Width (W3) 82.6mm
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    Country of Origin US
    GTIN-13 / EAN 4031026627847
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
