20/12/2024

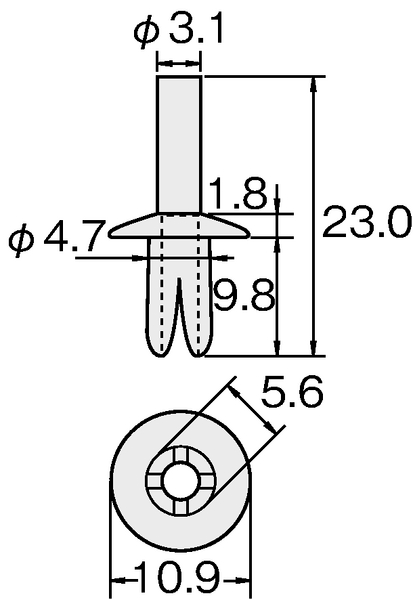

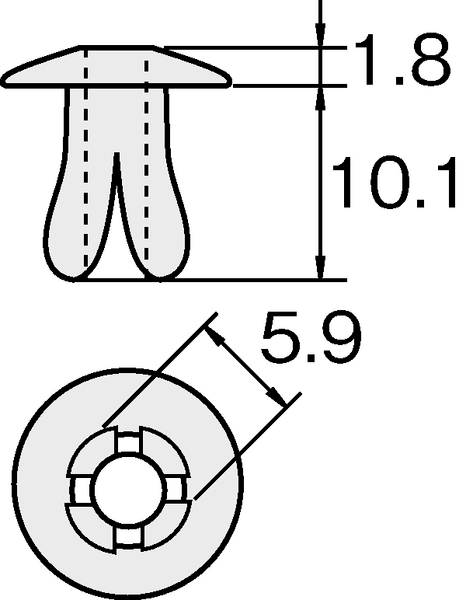

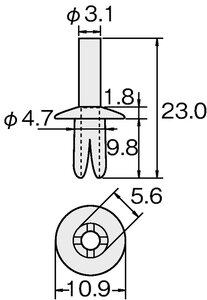

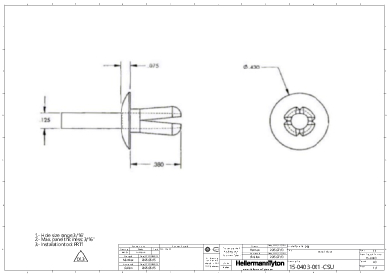

Accessory, HelaDuct, natural, 1000pcs. (PR1)
Art.-Nr. 181-00139 | PR1-PA66-NA |  Details

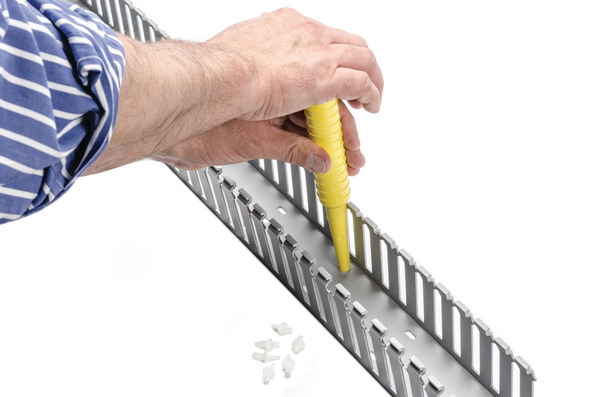

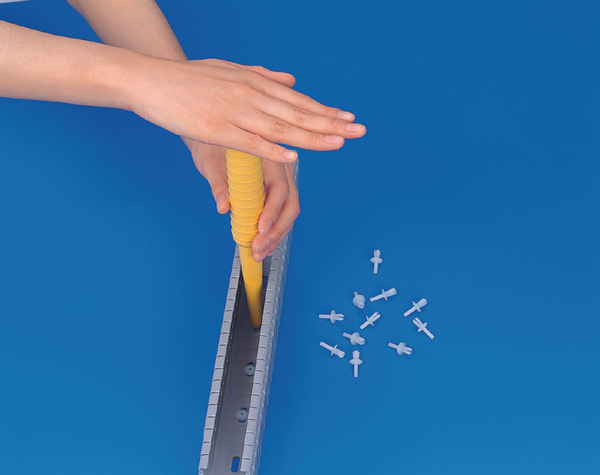

Ergonomic design ensures effortless use when inserting rivets into deep channels or locations difficult to access.

    • Very good mechanical properties
    • Good resistance to vibration

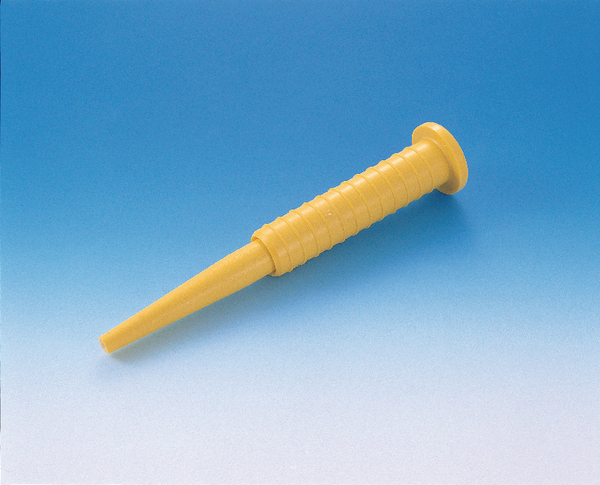

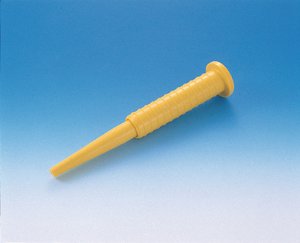

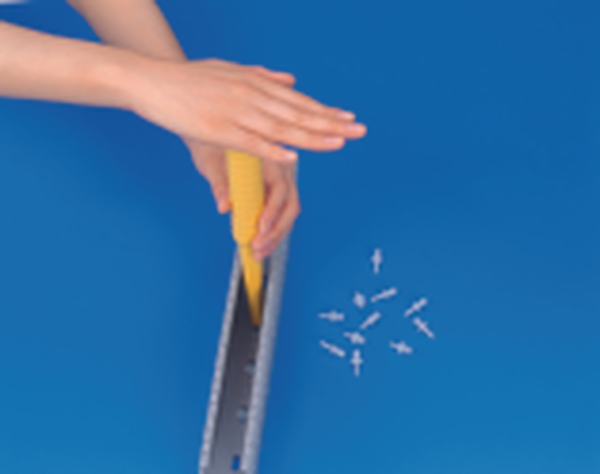

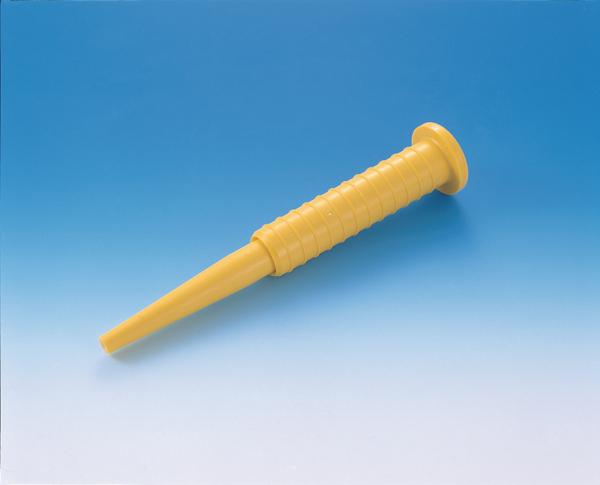

    • Easily and rapidly applied with HTWD-RT4 and HTWD-RT6 rivet tools
    • Colour-coded for easy identification for use with rivet tools
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application HTWD-R4 and HTWD-R6 are used to rapidly mount and secure wiring ducts into fixing holes without the use of screws.
    Colour Natural (NA)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PR1-PA66-NA
    Pack Cont. 1000pcs.
    Package Content packed in EA
    Product Family HelaDuct HTWD-R4 and HTWD-R6 rivets
    Product Group For installing wiring ducts into fixing holes
    Type PR1
    Min.Tensile Strength 478N
    Panel Thickness max. 3.9 - 7.0mm
    for Hole ∅ (FH) 5.0 mm
    for Panel Thickness min - max 3.9 - 7 mm
    ∅ D max. 0.02"
    ∅ D max. 0.51mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026718958
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC002377
    ETIM 8.0 Key EC002377
    ETIM 9.0 Key EC002377
    UNSPSC Key 39131713

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.

    Wiring ducts >
