Wiring duct raceway system in self-extinguishing ABS
Art.-Nr. 250-00209 | SMB4X2-ABS-WH |  Details

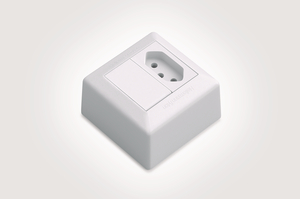

Surface box 4x2.

    • Ideal for power or data installation;
    • Minicanal wiring ducts are indicated as a routing system;
    • They have excellent surface finishing;
    • They can be fixed to any surface using screws;
    • They have cutout marking for all models of Minical wiring ducts.
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The surface box 4x2 is suitable for the application of standard 4"x2" mirrors, which can be used for both electrical and data installation. Supports up to 3 modules, including USB. It has demarcation for 1" input conduits at the bottom of the box.
    Colour White (WH)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION SMB4X2-ABS-WH
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Surface box in white ABS
    Product Group Wiring duct raceway system in self-extinguishing ABS
    Type SMB4X2
    Height (H) 45.0mm
    Length (L) 85.0mm
    Width (W) 128.0mm
    Flammability UL 94 V0
    ROHS compliant No
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 4031026471631
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
