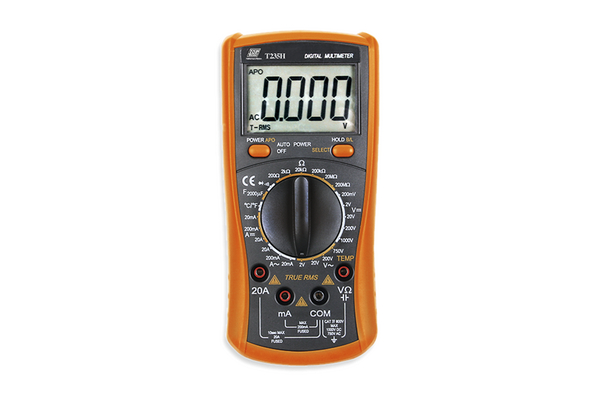

Electrician's Digital Multimeter
Art.-Nr. 911-00002 | T235H-MET/PL-GY/OG Details

  • Backlit
  • Large display
  • Temperature
  • Data hold
  • Capacitance
Show more

Request your individual offer now

CAT- Rating CATIV 600V
Colour Dark Grey (DKGY), Orange (OG)
Material Metal (MET), Plastic (PL)
PART DESCRIPTION T235H-MET/PL-GY/OG
Product Family T235H
Product Group Electrician's Digital Multimeter
Type T235H
AC Current (+Accuracy) 20mA/ 200mA/ 20A (±2.0% + 5 Digit)
AC Voltage (+Accuracy) 2/ 20/ 750V (±1.2 % + 10 Digit)
Capacitance (+Accuracy) 2nF/ 20nF/ 200nF / 2000μF/ 20mF (±2.5 % + 20 Digit)
DC Current (+Accuracy) 20μA/ 2μA/ 20mA/ 200mA/ 20A (±0.8 % + 3 Digit)
DC Voltage (+Accuracy) 200mV/ 2/ 20/ 200/ 1000V (±0.5% + 3 Digit)
Height (H) 27mm
Length (L) 190mm
Resistance (+Accuracy) 2kΩ/ 20kΩ/ 200kΩ/ 200/ 2MΩ/ 20MΩ (±1.2% + 4 Digit)
Temperature Measuring Range (+Accuracy) -20°C to 1000°C (±0.8 % + 4 Digit)
Weight/Unit 0.32kg
Width (W) 88mm
Accuracy
[+-1.2% + 4 Digit]
Parameter
[2kΩ/ 20kΩ/ 200kΩ/ 200/ 2MΩ/ 20MΩ]
Feature
[Resistance (Ω)]
Accuracy
[+-0.8% + 3 Digit]
Parameter
[20րA/ 2րA/ 20mA/ 200mA/ 20A]
Feature
[DC Current (A)]
Accuracy
[+-0.8% + 4 Digit]
Parameter
[-20 to +1000°C]
Feature
[Temperature (°C)]
Accuracy
[+-2.0% + 5 Digit]
Parameter
[20mA/ 200mA/ 20A]
Feature
[AC Current (A)]
Accuracy
[+-2.5% + 20 Digit]
Parameter
[2nF/ 20nF/ 200nF / 2000 րF/ 20mF]
Feature
[Capacitance (F)]
Accuracy
[1999 Counts]
Parameter
[3 1/2 Digits]
Feature
[Display]
Accuracy
[+-0.5% +3 Digit]
Parameter
[200mV/2 / 20/ 200/ 1000V]
Feature
[DC Voltage (V)]
Parameter
[40 - 400Hz]
Feature
[AC Frequency Response]
Parameter
[10MΩ]
Feature
[Input Impedance]
Accuracy
[+-1.2% + 10 Digit]
Parameter
[2/ 20/ 750V]
Feature
[AC Voltage (V)]
Accuracy Parameter Feature
+-1.2% + 4 Digit
2kΩ/ 20kΩ/ 200kΩ/ 200/ 2MΩ/ 20MΩ
Resistance (Ω)
+-0.8% + 3 Digit
20րA/ 2րA/ 20mA/ 200mA/ 20A
DC Current (A)
+-0.8% + 4 Digit
-20 to +1000°C
Temperature (°C)
+-2.0% + 5 Digit
20mA/ 200mA/ 20A
AC Current (A)
+-2.5% + 20 Digit
2nF/ 20nF/ 200nF / 2000 րF/ 20mF
Capacitance (F)
1999 Counts
3 1/2 Digits
Display
+-0.5% +3 Digit
200mV/2 / 20/ 200/ 1000V
DC Voltage (V)
  40 - 400Hz
AC Frequency Response
  10MΩ
Input Impedance
+-1.2% + 10 Digit
2/ 20/ 750V
AC Voltage (V)
