UN6040-ABS-WH
Art.-Nr. 250-00404 | UN6040-ABS-WH |  Details

Intercanal flat union UN6040.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION UN6040-ABS-WH
    Pack Cont. 1pc.
    Package Content packed in bag
    Type UN6040

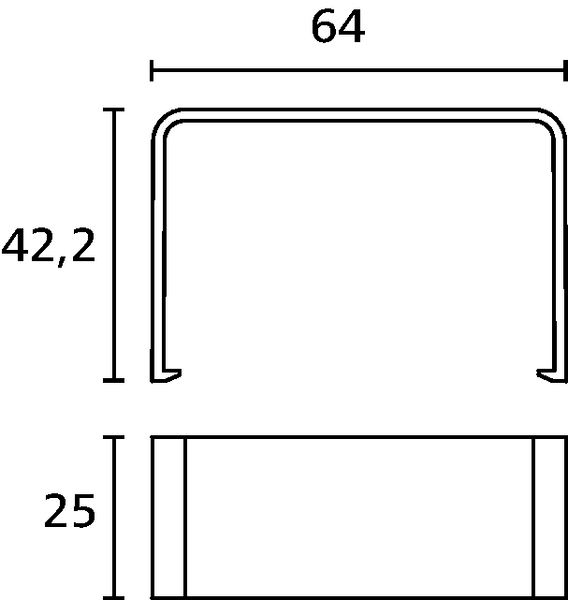

    Height (H) 42.2mm
    Length (L) 25.0mm
    Wall (WT) 1.8mm
    Width (W) 63.9mm
    Halogen-free Yes
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176099266
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
