Cable tie for autotools, bandolier, 4.8x2.5mm, Dmin=0.7mm, Dmax=20.0mm, white, 500pcs.
Art.-Nr. 120-04401
| T18RA50-PA66V0-WH
|
Details
- Available in bandoliers of 50 cable ties or reels of 3,500 cable ties
- Repetitive tension on the bundles
- Easily recyclable
Request your individual offer now
Request quote
More products in this product group:
| Application | The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool CPK hybrid is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector. |

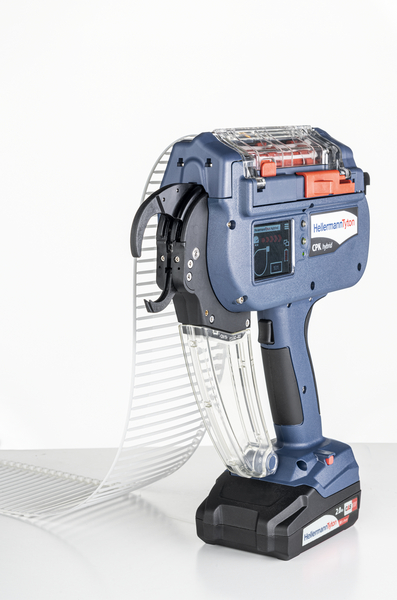

| Application Method | The cable ties have to be applied with the electrically operated automatic cable-tying system Autotool CPK hybrid from HellermannTyton. The cycle time is 0.65-1.0 sec. |
| Colour | White (WH) |
| Material | Polyamide 6.6 V0 (PA66V0) |
| PART DESCRIPTION | T18RA50-PA66V0-WH |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | Cable ties for Autotool CPK hybrid |
| Product Group | Automatic bundling up to Ø 20 mm |
| Tool suitable cable tie material | Plastic |
| Type | T18RA50 |
| Variant | bandolier |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E64962 |
| UV-Stabilised | No |
