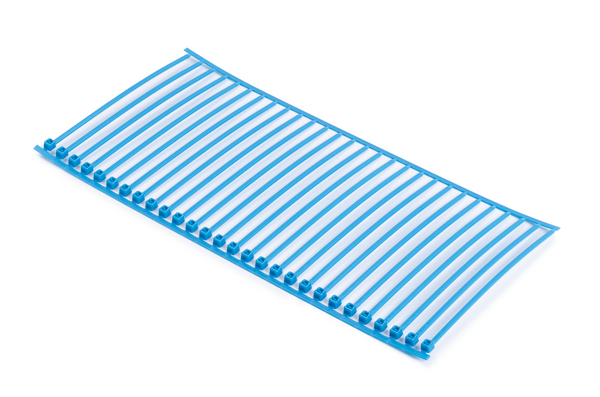

Cable tie for autotools, 4.8x2.5mm, Dmin=0.7mm, Dmax=20.0mm, blue, 5000pcs.
Art.-Nr. 120-05016 | T18RA5000-PA66HS-BU |  Details

    • Heat stabilised cable ties (PA66HS) for temperatures up to +105°C
    • Available in bandoleers of 50 cable ties or reels of 3,500 cable ties
    • Repetitive tension on the bundles
    • Easily recyclable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool CPK hybrid is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.
    Application Method The cable ties have to be applied with the electrically operated automatic cable-tying system Autotool CPK hybrid from HellermannTyton. The cycle time is 0.65-1.0 sec.
    Colour Blue (BU)
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T18RA5000-PA66HS-BU
    Pack Cont. 5000pcs.
    Package Content packed in reel
    Product Family Cable ties for Autotool CPK hybrid
    Product Group Automatic bundling up to Ø 20 mm
    Tool suitable cable tie material Plastic
    Type T18RA5000
    Bundle Diameter max (metric) 20.0mm
    Bundle ∅ 0.7-20.0mm
    Bundle ∅ min. 0.7mm
    Length (L) 4.8mm
    Min.Tensile Strength 80N
    Width (W) 2.5mm
    Country of Origin US
    GTIN-13 / EAN 4031026760377
    Packaging 1 - Qty 1
    Packaging 1 - Type reel
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 27112410
    Show all
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.
