22/12/2024

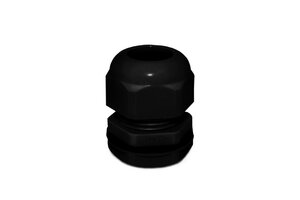

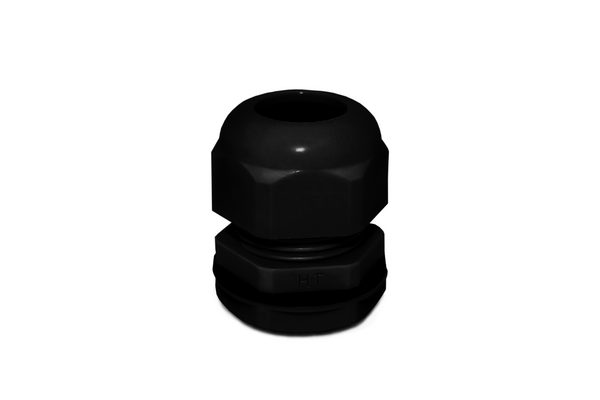

HTCG21PG-PA66-BK
Art.-Nr. 857-40988 | HTCG21PG-PA66-BK |  Details

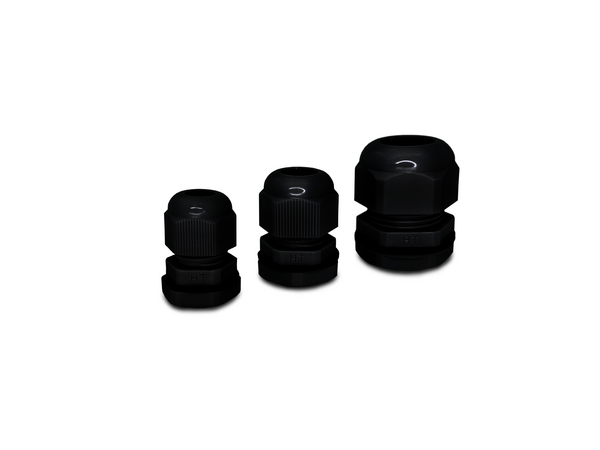

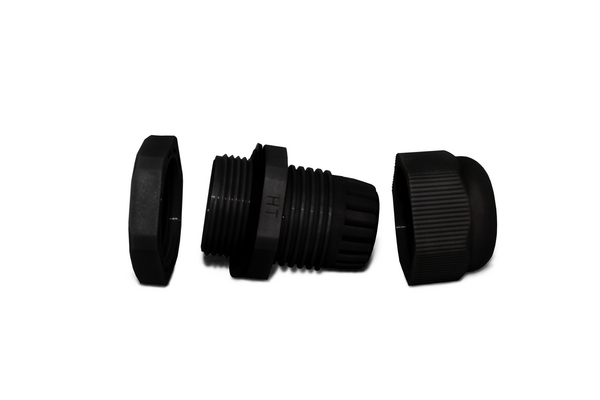

Cable glands.

    • Available in three thread types (BSP, PG and METRIC)
    • Product certified according to IEC 62444
    • High resistance to cable anchorage
    • IP67 degree of protection (dustproof and waterproof)
    • Easy application
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application HellermannTyton Cable Gland is ideal for fixing and retaining cables in electrical equipment, in order to guarantee the safety and integrity of the connections positioned inside the enclosure. Available in three thread patterns, the product brings versatility to the most varied types of electrical equipment projects, contributing to a perfect cable protection system. The HellermannTyton cable gland line was developed according to the construction and performance requirements of cable glands for electrical installations, defined in the IEC 62444 standard.
    Cable ∅ max 18.0mm
    Cable ∅ min 13.0mm
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HTCG21PG-PA66-BK
    Pack Cont. 25pcs.
    Product Family PG Thread
    Type HTCG21PG
    Diameter (D) 18.3mm
    Height (H) 30.0mm
    Height (H2) 10.2mm
    Wrenching Flat Size (Metric) 33mm
    for Hole ∅ (FH) 28.3 mm
    ∅ (D2) 28.3mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +100 °C
    Country of Origin CN
    GTIN-13 / EAN 7890176099648
    Show all
    Electrical Installation Electrical Installation

    Electrical Installation

    Professional and skilful electrical installation requires not only well-trained specialists, but also a well thought-out range of products. To help electricians and engineers make their work more safe and efficient...
