19/11/2024

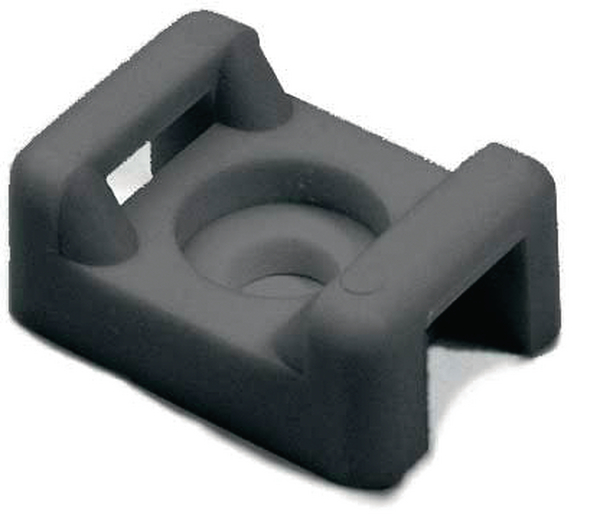

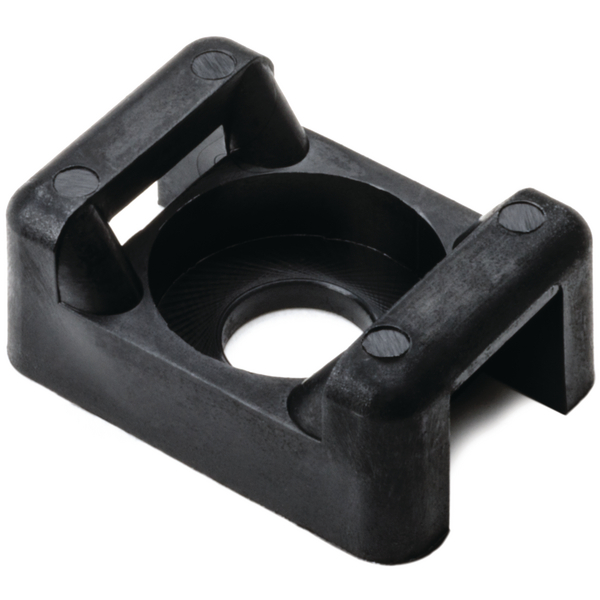

Cable tie mount for screw fixation, Wmax=7.8mm, ∅6.4 mm, #1/4" (M6) Screw, black, 100pcs.
Art.-Nr. 151-01203 | CTM4-PA66HS-BK |  Details

    • Curved design for additional cable support
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Mounts are available in various sizes and materials
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION CTM4-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Cable tie mounts with curved design
    Product Group Screw fixing mounts
    Type CTM4
    Height (H) 9.4mm
    Length (L) 21.9mm
    Strap Width max. (G) 7.8mm
    Width (W) 15.6mm
    for Hole ∅ (FH) 6.4 mm
    CE Certification Yes
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
