13/11/2024

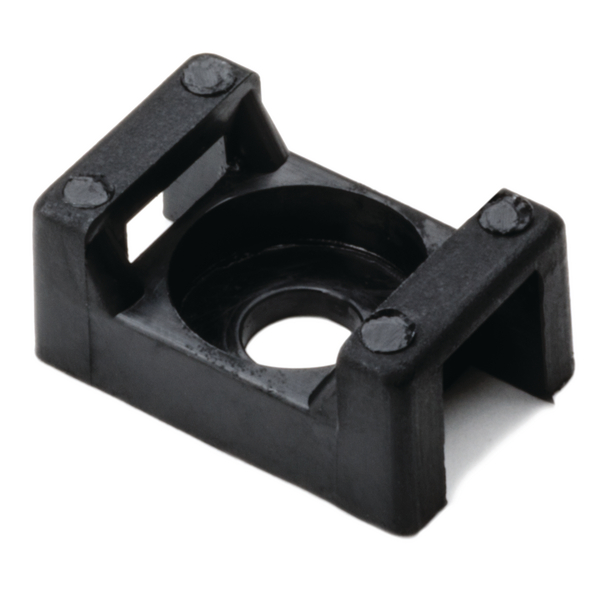

Cable tie mount for screw fixation, Wmax=5.0mm, ∅3.8 mm, #6 (M3) Screw, black, 100pcs.
Art.-Nr. 151-30300 | CTM0-PA66-BK |  Details

    • Curved design for additional cable support
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Mounts are available in various sizes and materials
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 7.9 mm wide.
    Colour Black (BK)
    Fixation Method Screw Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #6 (M3) Screw
    PART DESCRIPTION CTM0-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Cable tie mounts with curved design
    Product Group Screw fixing mounts
    Short Description Cable Tie Mount with curved design 14.7x9.4 mm black
    Type CTM0
    Height (H) 6.90mm

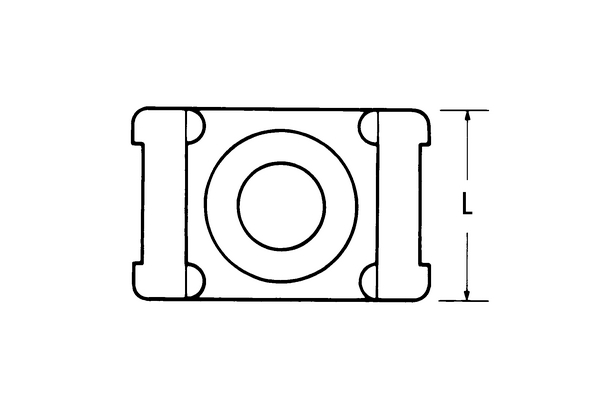

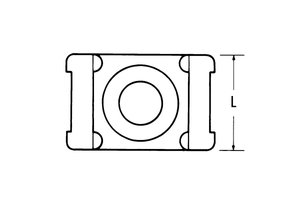

    Length (L) 14.7mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.0mm
    Weight/Unit 0.0005kg
    Width (W) 9.4mm
    for Hole ∅ (FH) 3.8 mm
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026545479
    Packaging 1 - Height (m) 0.015m
    Packaging 1 - Length (m) 0.27m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00051m³
    Packaging 1 - Weight (kg) 0.050001kg
    Packaging 1 - Width (m) 0.125m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 15000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 8.12015kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 300000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 183.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
