22/12/2024

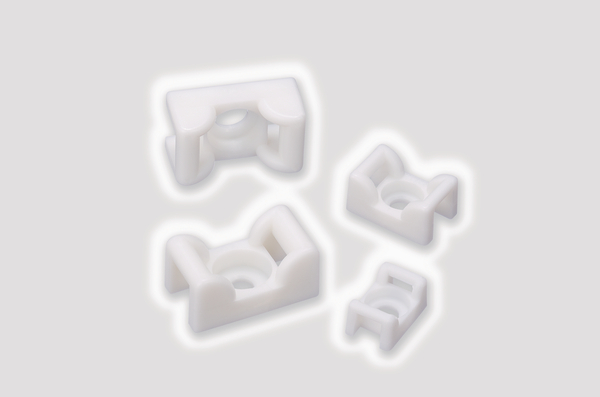

Cable tie mount for screw fixation, Wmax=5.0mm, ∅4.5 mm, M4 Screw, white, 100pcs.
Art.-Nr. 151-03479 | KR5G5-PA66V0-WH |  Details

    • Curved design for additional cable support
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Mounts are available in various sizes and materials
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
    Colour White (WH)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6 V0 (PA66V0)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION KR5G5-PA66V0-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Cable tie mounts with curved design
    Product Group Screw fixing mounts
    Type KR5G5
    Height (H) 6.9mm
    Length (L) 15.1mm
    Strap Width max. (G) 5.0mm
    Width (W) 9.6mm
    for Hole ∅ (FH) 4.5 mm
    Flammability UL 94 V0
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387123494
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
