Cable tie mount for screw fixation, Wmax=5.0mm, ∅4.5 mm, M4 Screw, blue, 100pcs.
Art.-Nr. 151-03839 | MCXRKR5G5-PA66MDXRAYD-BU |  Details

    • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
    • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
    • Greatly reduced risk of contamination within food products
    • Can support quality assurance in the production of food stuffs, for example HACCP
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

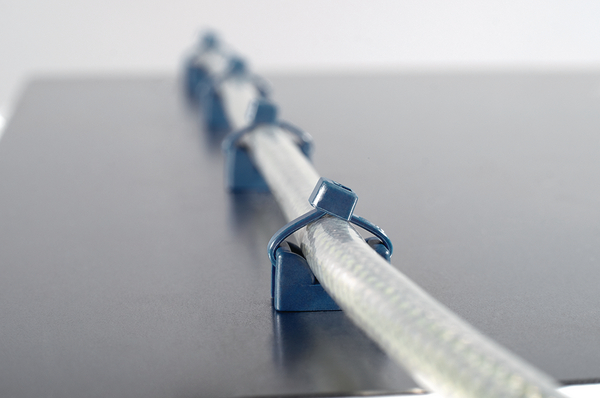

    Application MCXR screw fixing mounts are ideally suited for fixing wiring in position where food factory and pharmaceutical manufacturing site.
    Colour Blue (BU)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, metal detectable, X-ray detectable (PA66MDXRAYD)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION MCXRKR5G5-PA66MDXRAYD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag

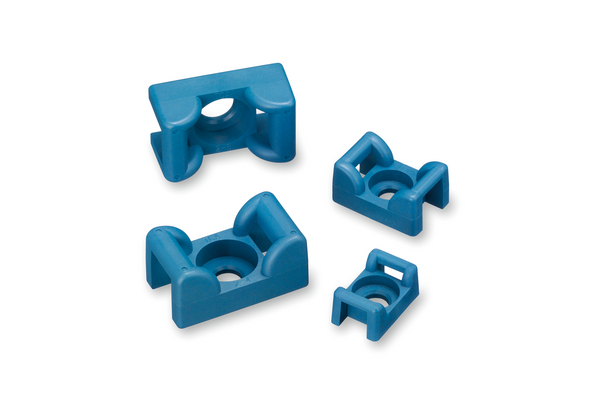

    Product Family Cable tie mounts with curved design
    Product Group Screw fixing mounts
    Type MCXRKR5G5

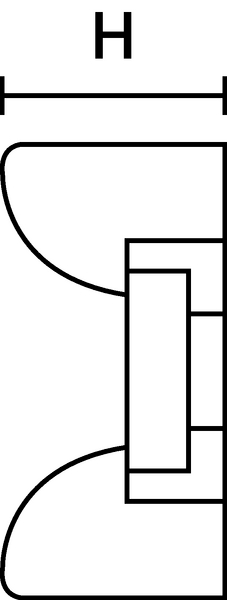

    Height (H) 6.9mm
    Length (L) 15.1mm
    Strap Width max. (G) 5.0mm
    Width (W) 9.6mm
    for Hole ∅ (FH) 4.5 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387125221
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
