19/11/2024

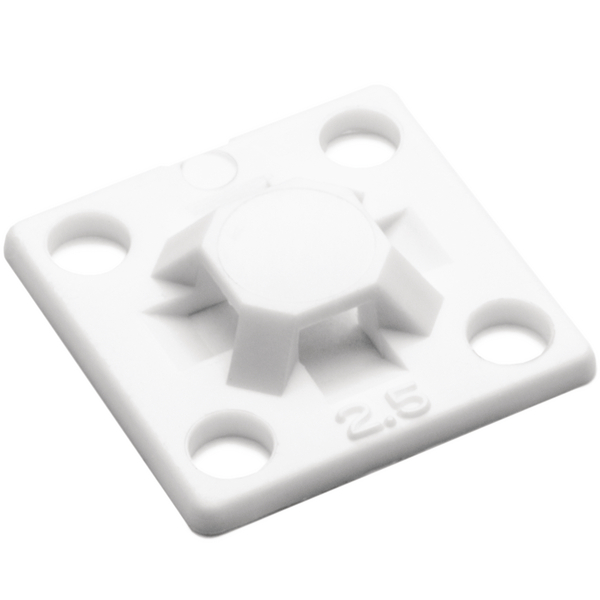

Cable tie mount for screw fixation, Wmax=2.54mm, ∅2.8 mm, #3 Screw, white, 100pcs.
Art.-Nr. 151-28901 | MB2.5-PA66-WH |  Details

Compact size fits most mounting applications.

    • Screwable or self-adhesive versions
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide.
    Colour White (WH)
    Fixation Method Screw Mount
    For Ties T18
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #3 Screw
    PART DESCRIPTION MB2.5-PA66-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MB-Series square design, screwable
    Product Group Screw fixing cable tie mounts
    Type MB2.5
    Height (H) 3.30mm
    Length (L) 15.9mm
    Strap Width max. (G) 0.1"
    Strap Width max. (G) 2.54mm
    Width (W) 15.9mm
    for Hole ∅ (FH) 2.8 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726717
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
