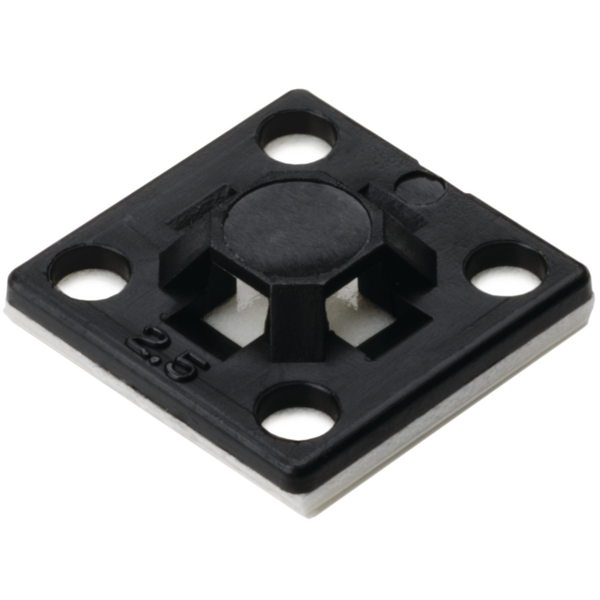

Cable tie mount for adhesive use, Wmax=2.54mm, ∅2.8 mm, Adhesive, black, 1000pcs.
Art.-Nr. 151-29001 | MB2.5A-PA66-BK |  Details

Compact size fits most mounting applications.

    • Simple to instal
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Black (BK)
    Fixation Method adhesive
    For Ties T18
    Material Polyamide 6.6 (PA66)
    Maximum Static Load (lb/ft) 0.3lbf-ft
    Mounting Screw Type Adhesive
    PART DESCRIPTION MB2.5A-PA66-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family MB-Series square design, self-adhesive
    Product Group Cable tie mounts
    Type MB2.5A
    Height (H) 4.1mm
    Length (L) 15.9mm
    Load max. 1.334N
    Strap Width max. (G) 0.1"
    Strap Width max. (G) 2.54mm
    Thickness of Adhesive (TA) nom. 0.031"
    Thickness of Adhesive (TA) nom. 0.8mm
    Width (W) 15.9mm
    for Hole ∅ (FH) 2.8 mm
    Adhesive Synthetic rubber with base of polyethylene foam
    Adhesive Operating Temperature -18 °C to +66 °C
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2 (excluding adhesive)
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726519
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
