21/11/2024

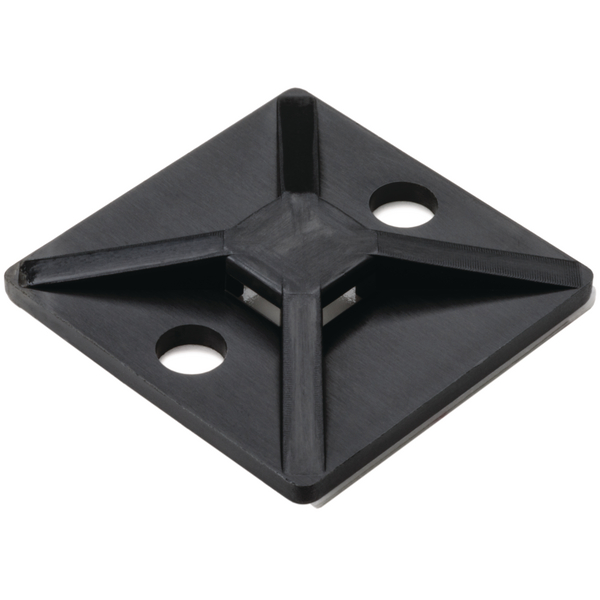

Cable tie mount for adhesive use, Wmax=4.6mm, ∅4.6 mm, #8 Screw, black, 500pcs.
Art.-Nr. 151-28405 | MB4A-PA66-BK |  Details

Cable Tie Mounts MB and TY.

    • Simple to instal
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Black (BK)
    Fixation Method adhesive
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Maximum Static Load (lb/ft) 1.1lbf-ft
    Mounting Screw Type #8 Screw
    PART DESCRIPTION MB4A-PA66-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family MB-Series square design, self-adhesive
    Product Group Cable tie mounts
    Type MB4A
    Fixing Hole Centres (F) 0.8"
    Fixing Hole Centres (F) 20.2mm
    Height (H) 5.8mm
    Length (L) 28.5mm
    Load max. 4.893N
    Strap Width max. (G) 0.18"
    Strap Width max. (G) 4.6mm
    Width (W) 28.5mm
    for Hole ∅ (FH) 4.6 mm
    Adhesive Acrylate with base of acrylic foam
    Adhesive Operating Temperature -35 °C to +70 °C
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2 (excluding adhesive)
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726403
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
